Chiyoda Tsusho FM4/6 TOUCH CONNECTOR FIVE MINI SPEED CONTROLLER
Made in Japan
Manufacturer: Chiyoda Tsusho
Model: FM4/6
Feature
Compact design
Compact and ultra-lightweight type suitable for small cylinders
Excellent flow rate adjustment
Adjustment function for easy speed control in the low flow range.
Flame-retardant body
Flame-retardant body with five touch connectors.
Sealed threads (R threads)
Thread sealing process allows piping without modification.
Flexibility of the upper part of the screw
Elbow body and screw can be rotated.
* Not a rotary type.
Specifications
| Model | A | B1 | B2 | ØC | Tube O.D. ØD | E | Spanner Flats H | L | Thread T | Tube Insertion Depth | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Black body | White body | |||||||||||
| FM4R-M3-0(I) | FM4R-M3W-0(I) | 19.9 | 30.1 | 32.5 | 11.0 | 4 | 13.0 | 8.0 | 10.5 | M3×0.5 | 12.0 | 11.0 |
| FM4R-M5-0(I) | FM4R-M5W-0(I) | 19.9 | 31.1 | 33.5 | 11.0 | 4 | 14.0 | 8.0 | 10.5 | M5×0.8 | 12.0 | 12.0 |
| FM4R-01-0(I) | FM4R-01W-0(I) | 19.9 | 33.6 | 36.0 | 11.0 | 4 | 16.5 | 10.0 | 12.5 | R1/8 | 12.0 | 15.0 |
| FM6R-M5-0(I) | FM6R-M5W-0(I) | 22.3 | 31.1 | 33.5 | 13.0 | 6 | 15.0 | 8.0 | 11.5 | M5×0.8 | 12.5 | 13.5 |
| FM6R-01-0(I) | FM6R-01W-0(I) | 22.3 | 33.6 | 36.0 | 13.0 | 6 | 17.5 | 10.0 | 13.5 | R1/8 | 12.5 | 16.5 |
General Drawing

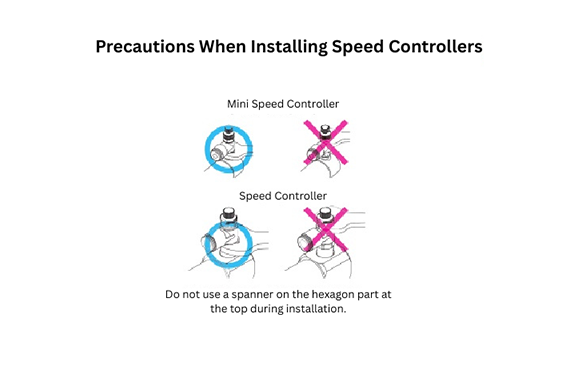

Instruction for use
