Daico DL series Drying and Draining Air Blower, High Pressure Blower
Manufacturer: Daico Thermotec Co.,Ltd
Model: DL series
Features

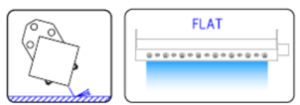

The DL series is a slit-type nozzle for air blowing exclusively for high-pressure blowers.
It ensures a stable linear air flow from low to high air speeds, allowing for even removal during air blowing processes such as drying and draining on the line.
The jet slit specifications are the same as those of the CL & CLW series for high-pressure blowers , but this series has an air inlet attached to the end.
Specifications
| Nozzle Model | Slit Length | Weight (reference) | Slit Width | Air inlet |
|---|---|---|---|---|
| DL-500 | 500mm | 3200g | 0.8mm | φ50 PT(R)1 1/2″ (external thread) PS(Rp)1 1/2″ (internal thread) |
| DL-600 | 600mm | 3800g | ||
| DL-700 | 700mm | 4400g |
