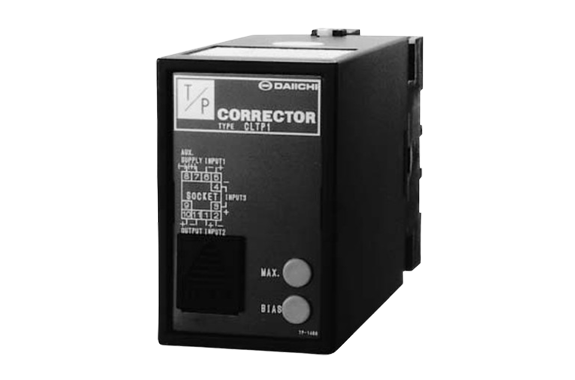

Manufacturer: Daiichi Electronics Co., Ltd.
Model: CLTP1-C7H1

Features

• Constant voltage and constant current output.
• Withstand voltage:
  2,000 V AC (50/60 Hz) for 1 minute between the entire circuit and the enclosure.
  1,500 V AC (50/60 Hz) for 1 minute between input/output and auxiliary power.
  1,500 V AC (50/60 Hz) for 1 minute between input and output.
• Differential input/output is not supported.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between the electrical circuit and enclosure).

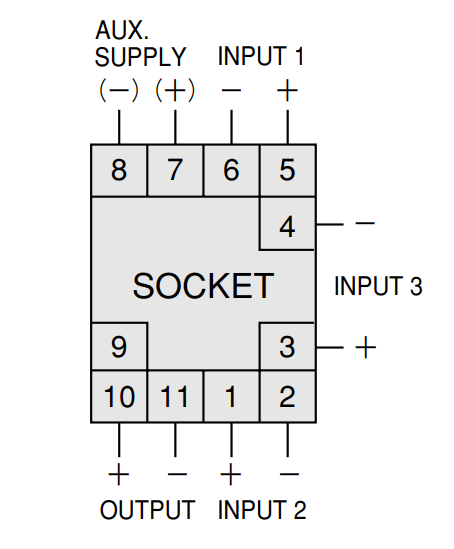

Wiring Diagram
