Daikoken Heat JX Series Circumferential External Injection Ring Nozzle
Manufacturer: Daikoken Heat Co., Ltd.
Model: JX Series
Features
- The JX Series is a nozzle specifically for high-pressure air (compressors, etc.).
- The JN Series is a nozzle for high-pressure blowers. It provides stable performance from low speeds up to 160 m/s.
- These nozzles can be connected to a hot air generator and used in high-temperature environments.
- Nozzles of larger diameters and smaller sizes can also be made upon request.
Specifications
| Nozzle Type | Injection Loop Diameter | Slit Width | Blowing Port |
|---|---|---|---|
| JX-1 | φ20 ~ φ30 | 0.3mm | PS1/4 |
| JX-2 | φ32 ~ φ42 | 0.3mm | PS3/8 |
| JX-3 | φ44 ~ φ60 | 0.3mm | PS3/8 |
| JX-4 | φ62 ~ φ80 | 0.3mm | PS3/8 |
| JX-5 | φ70 ~ φ90 | 0.3mm | PS1/2 |
| JN-1 | φ70 ~ φ90 | 0.3mm | PS1 |
| JN-2 | φ80 ~ φ100 | 1mm | PS1 1/4 |
| JN-3 | φ80 ~ φ100 | 1mm | PS1 1/2 |
| JN-4 | φ100 ~ φ130 | 1mm | PS2 |

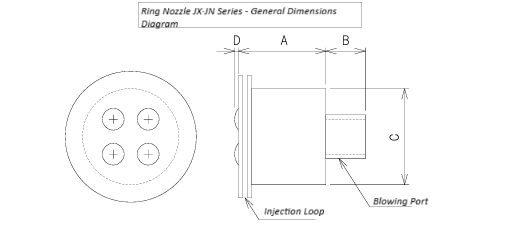

| Nozzle Type | A | B | C | D |
|---|---|---|---|---|
| JX-1 | 22.3 | 16 | φ17.3 | 6.5 |
| JX-2 | 22.3 | 16 | φ27.2 | 6.5 |
| JX-3 | 37.3 | 16 | φ38 | 12 |
| JX-4 | 43.3 | 16 | φ50 | 15 |
| JX-5 | 54.3 | 16 | φ60.5 | 15 |
| JN-1 | 30 | 25 | φ38 | 10 |
| JN-2 | 40 | 28 | φ50 | 12 |
| JN-3 | 50 | 28 | φ60.5 | 15 |
| JN-4 | 60 | 34 | φ76.3 | 23 |
