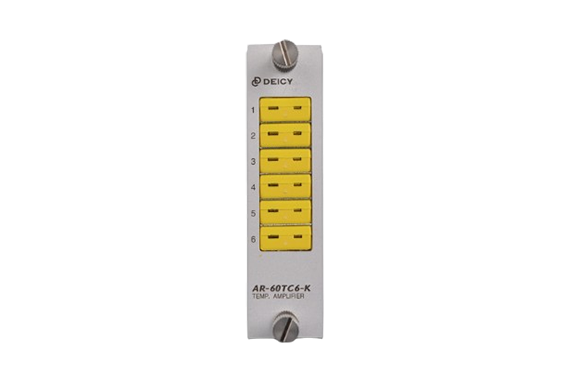

Deicy AR-60TC6 Series 6-Channel Thermocouple Input Amplifier Module
Manufacturer: DEICY Co., Ltd.
Model: AR-60TC6 Series
Features
- This is a 6-channel thermocouple input amplifier module for the DR-900 series.
- It is available for K, T, J, or E type thermocouples.
Specifications
| Item | Specification |
|---|---|
| Input / Channels | AR-60TC6-K: 6ch K-type thermocouple, AR-60TC6-T: 6ch T-type thermocouple, AR-60TC6-E: 6ch E-type thermocouple |
| Input Connector | MU-K7 (TC6-K), MU-T7 (TC6-T), MU-J7 (TC6-J), MU-E7 (TC6-E) |
| Input Type | Flying capacitor method, Channel isolation |
| Maximum Insulation Voltage | 200 V DC |
| Burnout Detection | Supported |
| Range | AR-60TC6-K: -30°C to +200°C, -30°C to +500°C, -30°C to +1000°C AR-60TC6-T: -30°C to +100°C, -30°C to +200°C, -30°C to +300°C AR-60TC6-J: -30°C to +100°C, -30°C to +200°C, -30°C to +500°C AR-60TC6-E: -30°C to +200°C, -30°C to +500°C, -30°C to +1000°C Channel settings adjustable |
| Accuracy | Each input range: +/-0.2% FS or within +/-1°C |
| Cold Junction Compensation | -10°C to +60°C, within +/-1°C |
| Non-linearity Compensation | Internal CPU-based curve compensation, Post-correction accuracy within +/-1°C |
| Frequency Characteristics | 0 – 10 Hz at -3 dB |
| ADC | 16bit Successive Approximation ADC x 1 |
| External Dimensions / Weight | 24.8(W) x 95(H) x 151.5(D) mm, 0.23 kg (excluding protrusions) |
| Power Supply | Supplied from DR-900, approximately 5W |
