Deicy CAC Series In-Line Charge Converter
Manufacturer: DEICY Co., Ltd.
Model: CAC Series
Features
- The in-line charge converter is a charge signal to voltage signal converter for using a charge type acceleration sensor with an IEPE amplifier, and can be used by inserting it between the sensor cable and the input connector of the amplifier unit.
Specifications

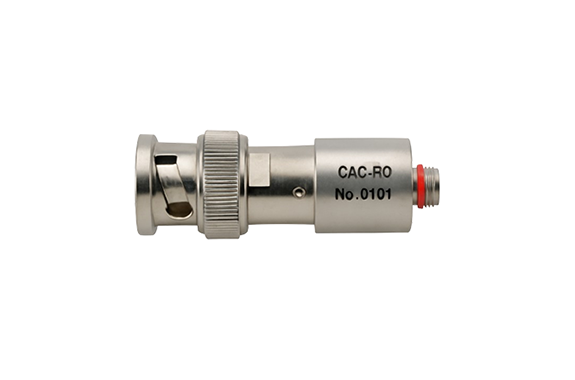

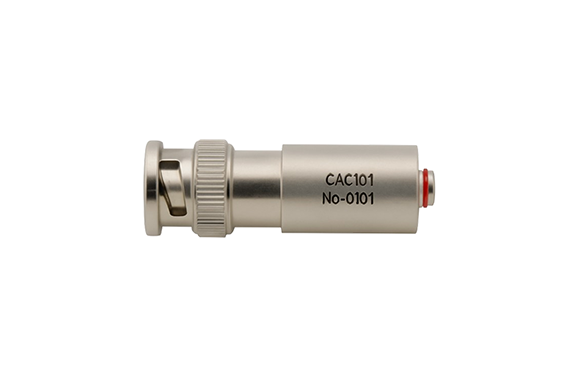

| Model | CAC1R0 | CAC100 | CAC500 | CAC101 |
|---|---|---|---|---|
| Gain (mV/pC) | 1.0 ± 2.5% | 10 ± 5% | 50 ± 5% | 100 ± 5% |
| Frequency Range (Hz ± 3dB) | 2 ~ 50,000 | 2 ~ 50,000 | 2 ~ 100,000 | 2 ~ 50,000 |
| Output Impedance (Ω or less) | 200 | 500 | 100 | 100 |
| Maximum Output Voltage (Vp-p or more) | 10 | 10 | 8.5 | 8.5 |
| DC Output Voltage (V) | 10 ± 2 | 10 ± 2 | 12 ± 2 | 12 ± 2 |
| Driving Voltage (VDC) | 18 ~ 36 | 18 ~ 36 | 18 ~ 27 | 18 ~ 27 |
| Driving Current (mA) | 2.0 ~ 20 | 2.0 ~ 20 | 2.0 ~ 20 | 2.0 ~ 20 |
| Noise Level (pC rms or less) | 0.05 | 0.05 | 0.15 | 0.15 |
| Operating Temperature Range (°C) | 0 ~ +50 | 0 ~ +50 | 0 ~ +50 | 0 ~ +50 |
| Input Connector | Miniature (10-32) | Miniature (10-32) | Miniature (10-32) | Miniature (10-32) |
| Output Connector | BNC | BNC | BNC | BNC |
| Dimensions (mm) | φ15 × L35.5 | φ15 × L35.5 | φ15 × L48.5 | φ15 × L48.5 |
| Weight (g) | 20 | 20 | 25 | 25 |
