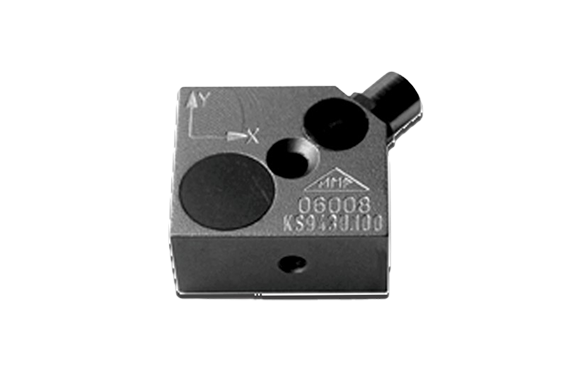

Deicy KS943L Three Axis Rope File Low Power Consumption Type
Manufacturer: DEICY Co., Ltd.
Model: KS943L
Features
- A low-profile 3-axis acceleration sensor with a height of 11.2 mm (MMF, Germany).
- Low power consumption (0.1 to 4mA) type for telemetry and battery power system applications
Specifications
| Model | KS943L |
|---|---|
| Purpose | Low Power IEPE (Telemetric, Battery Powered, etc.) |
| Number of Axes | 3 |
| Sensitivity (mV/G) | 14 |
| Maximum Usable Acceleration (G) | 240 |
| Frequency Characteristics (Hz ± 3 dB) | 0.3 ~ 19,000 (2 axes) |
| Common Mode Frequency (Hz) | >33 (+25 dB) |
| Operating Temperature Range (°C) | -20 ~ +90 |
| Weight (g) | 16 |
| Constant Current (mA) | 0.1 ~ 4 |
| Shape | Share Type |
| Cable Direction | Horizontal |
| Connector | Binder 707 |
| Attachment Method | M3 (Vertical / YZ) |
| Case Material | Aluminum |
| Dimensions (mm) | 22.5 x 22.5 x 11.2 (H) |
| Suitable Cable | 091 (3m, 80°C) · Binder 707 |
| Cable Recommendation | 091 (1m, 120°C) · Binder 711 (Binder 707) · Binder 711 (Optional 5m) · Binder 711 (Optional 10m) |
