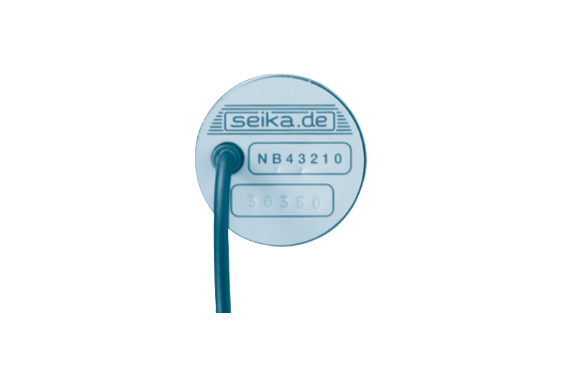

Deicy NB3 Film Spring Mass Capacitive Inclination Sensor
Manufacturer: DEICY Co., Ltd.
Model: NB3
Features
- This tilt angle sensor outputs a highly accurate linear signal for slight tilt angle changes of ±10°or less.
Specifications
| Item | NB3 |
|---|---|
| Linear Range | ±10° |
| Resolution | <0.001° |
| Non-linearity | 0.04° |
| Horizontal Tilt | Approximately flat |
| Response Time | Approx. 0.3 sec (Option: ≤ 0.3 sec) |
| Power Supply | Ubn=5V DC |
| Input Voltage Range | Ubz=3~6V DC |
| Current Consumption | Approx. 1mA |
| Operating Temperature Range | -45°C to +90°C (Option: 125°C) |
| Durability | 5G, 5 ~ 500Hz |
| Shock Resistance | Approx. 100G |
| Weight (without cable) | Approx. 25g |
| Housing Material | Brass Nickel Plating |
| Connection Cable | Standard: 0.5m (φ2.1mm) shielded cable. Option: direct 3-wire cable 180mm (Cable length can be extended by request.) |
