DEICY

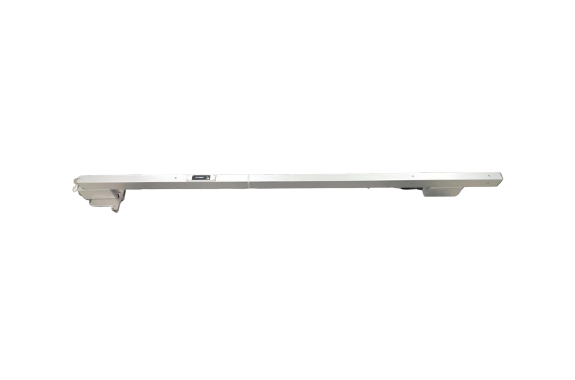

Deicy SP-TG100 Smartphone Gauge
Manufacturer: DEICY Co., Ltd.
Model: SP-TG100
Features
- Gauge, level and backgauge can be easily displayed and recorded on a wirelessly connected smartphone.
- Additional information such as distance, line, and person measuring can also be recorded
- Lightweight (narrow gauge: 1.8 kg), easy to operate (just press a button), and highly accurate (reproducibility 0.2 mm)
- Compliant with JIS E 1507 (railway gauges) and EN13848-4 (hand measuring gauges and lightweight measuring devices)
Specifications
| Item/Model | Standard Rail (1435mm) | Narrow Rail (1067mm) |
|---|---|---|
| Track | -40mm/+60mm | -40mm/+60mm |
| Water Level | -250mm to +250mm | -250mm to +250mm |
| Flatness | ±440mm | ±240mm |
| Back Gauge | 1375mm to 1475mm | 1107mm to 1007mm |
| Resolution | 0.2mm | 0.2mm |
| Accuracy | ±0.5mm | ±0.5mm |
| Track Measurement Position | From the rail surface to -14mm (up to -16mm with custom specification) | From the rail surface to -14mm (up to -16mm with custom specification) |
| Data Memory Size | Based on available memory in the smartphone | Based on available memory in the smartphone |
| Data Output | Bluetooth v4.2 wireless power | Bluetooth v4.2 wireless power |
| Power Supply | AA dry batteries x4 (rechargeable batteries available) | AA dry batteries x4 (rechargeable batteries available) |
| Operating Temperature Range | -10°C to +40°C | -10°C to +40°C |
| External Dimensions | 1630 x 83 x 80mm | 1260 x 83 x 80mm |
| Weight (excluding smartphone) | 2.3kg | 1.8kg |
