Eagle Clamp VAS Type Clamp For Steel
Products Made in Japan
Manufacturer: Eagle Clamp
Model: VAS Type
Specifications
Model | Load Capacity Minimum to Maximum(kg) | Applicable Dimensions (mm) | Dimensions (mm) | |||||
| A | B | C | D | E | F | |||
| VAS-1 (5-30) | 200 ~ 1000 | 5~30 | 32 | 34 | 118 | 27 | 26 | 138~193 |
| VAS-2 (5-36) | 400 ~ 2000 | 5~36 | 40 | 40 | 144 | 35 | 32 | 170~218 |
| VAS-3 (5-36) | 600 ~ 3000 | 5~36 | 40 | 45 | 157 | 40 | 32 | 186~231 |
Model | Dimensions (mm) | Product Weight (kg) | |||||||
| G | H | I | J | K | R | W1 | W2 | ||
| VAS-1 (5-30) | 42 | 127 | 22 | _ | 135 | 25 | 57 | 25 | 5.8 |
| VAS-2 (5-36) | 48 | 165 | 22 | _ | 167 | 32 | 68 | 28 | 8 |
| VAS-3 (5-36) | 55 | 180 | 25 | _ | 193 | 37 | 76 | 28 | 12.1 |
For dimensions in the figure, please inquire each time.

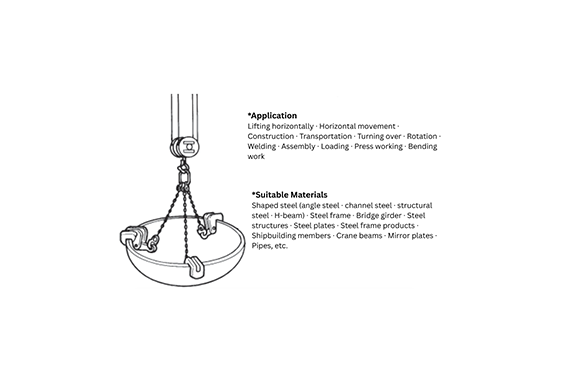

Use
Horizontal fishing, horizontal fishing, transporting, inverting, assembling, mounting, pressing, bending processing, welding
Applicable elements
Steel plate, I shape steel, groove shape steel, mirror plate, crane beam, steel structure, bridge, steel beam, steel frame
