Electronic Magnetic Industry Co.

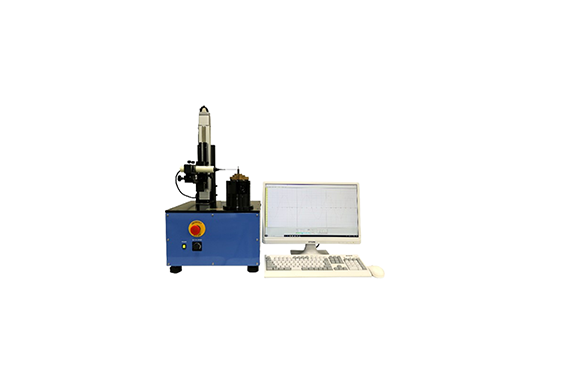

EMIC MA-7115 Magnet Analyzer
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: MA-7115
Features
- Measure and evaluate the surface flux density of magnetized magnets with a probe
- Gaussmeter and Hall probe support 3-axis measurement, allowing simultaneous X, Y, and Z flux density evaluation (MA-7315 only)
- Measurement data is output in CSV format, so it can be imported into general-purpose spreadsheet software.
- There are two types for cylindrical evaluation and plane evaluation.
Specifications
| Measurement and Processing Equipment Department | MA-7105 | MA-7115 | MA-7315 |
| Gausmeter | GM-5015S | GM-5317S | |
| Measurement input | 1ch | 3ch | |
| computer | PC/AT Compatible Machine | ||
| OS | Windows 10 Professional | ||
| AD conversion resolution | 12bit | ||
| Attachment Software | Microsoft Office Personal | ||
| monitor | 1024×768 or higher recommended | ||
| printer | Color inkjet printer (optional) | ||
| Power input | AC100～240V 50/60Hz | ||
| Cylindrical magnetic field measurement section | MA-7105 | MA-7115 | MA-7315 |
| Workpiece fixation | 3 Jaw Scroll Chuck | ||
| Fixable dimensions | BS nail φ2mm~φ42mm SS nail φ42mm~φ100mm However, outer diameter | ||
| Rotary drive | Speed Control Motor | ||
| Rotational Directional Resolution | 25000P/R | ||
| Up and down movement range | 100mm (manual) | 200mm (Automatic) | |
| Dimensions (mm) and mass | 400W×600H×300D ‘ approx. 38kg | 400D×750H×400D approx. 45kg | |
