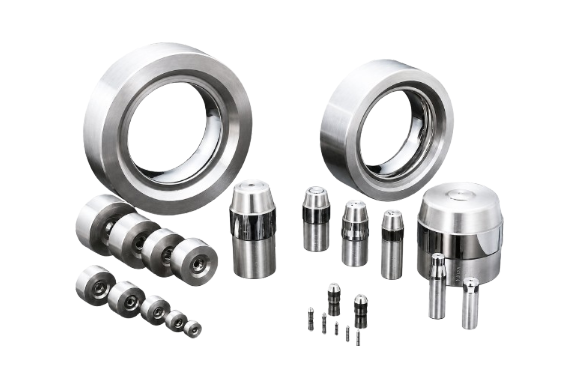

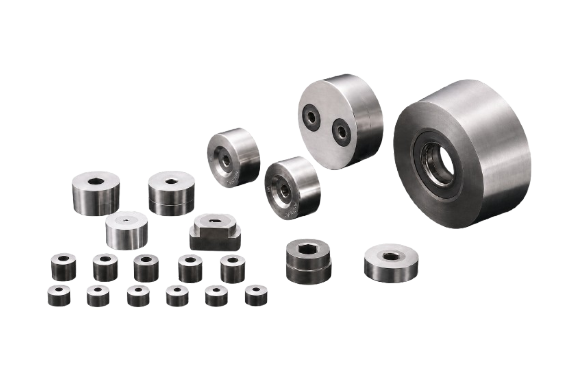

Fuji Die Wire Drawing Dies W100 Type For Hard Materials
Manufacturer: Fuji Die Co., Ltd.
Model: W100 Type

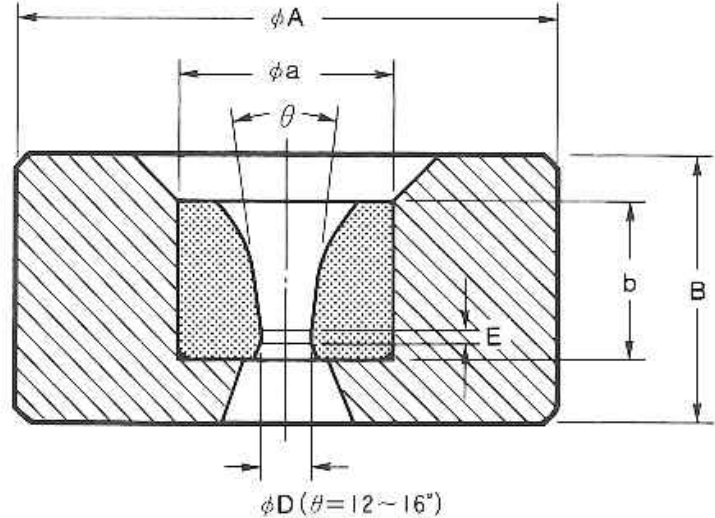

Specifications and Dimensions
| Model No. | D | Chip | Case | |||
|---|---|---|---|---|---|---|
| a | b | E | A | B | ||
| W 103 | 1.5 ~ 2.5 | 12 | 8 | 1/3 D | 30 | 15 |
| W 104 | 2.5 ~ 4 | 15 | 10 | 1/3 D | 42 | 20 |
| W 105 | 4 ~ 6 | 20 | 14 | 2/3 D | 55 | 24 |
| W 106 | 6 ~ 8 | 25 | 18 | 2/3 D | 60 | 28 |
| W 107 | 8 ~ 10 | 30 | 22 | 4 | 70 | 35 |
| W 108 | 10 ~ 13 | 35 | 25 | 4 | 85 | 40 |
| W 109 | 13 ~ 16 | 40 | 27 | 4 | 100 | 45 |
| W 110 | 16 ~ 20 | 50 | 30 | 5 | 125 | 50 |
| W 111 | 20 ~ 26 | 60 | 35 | 6 | 145 | 60 |
| W 112 | 26 ~ 32 | 70 | 40 | 8 | 175 | 70 |
| W 113 | 32 ~ 38 | 80 | 45 | 9 | 195 | 80 |
| W 114 | 38 ~ 46 | 90 | 50 | 10 | 215 | 90 |
| W 115 | 46 ~ 54 | 100 | 50 | 10 | 230 | 90 |
| *W 116 | 54 ~ 62 | 110 | 55 | 13 | 230 | 95 |
| *W 117 | 62 ~ 70 | 120 | 55 | 13 | 245 | 95 |
| *W 118 | 70 ~ 78 | 130 | 60 | 15 | 245 | 100 |
| *W 119 | 78 ~ 86 | 140 | 60 | 15 | 260 | 100 |
