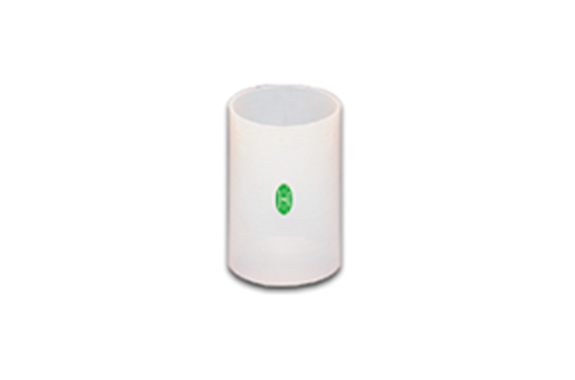

Hachiken HC Clear Sleeve

Made in Japan
Manufacturer : Hachiken
Model : HC

A transparent silicone rubber sleeve for connecting high-temperature and food-related piping.

Feature

  • Since the main body is transparent, it is possible to check the presence or absence of internal fluid (it is semi-transparent when the reinforcing layer is included).
  • It is possible to manufacture even large calibers, which were difficult in the past.

Usage

  • Food plant

Standard specifications

  • Maximum operating temperature : -40 to 150°C
  • The maximum operating temperature for products with a reinforcing layer is 60°C.

Structure and material

Part number Name Material
1 Inner rubber Silicone rubber
2 Reinforcing layer Synthetic fiber
3 External rubber Silicone rubber

Dimensions and performance table

* Please contact us separately for sizes from 300A to 1000A.

Nominal diameter A. B. L.
No cloth With cloth At the earliest Longest
50A 61 67 74 100 2000
65A 76 82 89 100 2000
80A 89 95 102 100 2000
100A 114 120 127 100 2000
125A 140 146 153 100 2000
150A 165 171 178 100 2000
200A 216 226 229 100 2000
250A 267 277 280 100 1000

*Various dimensions such as content change and wall thickness change are possible. Please contact us separately.

<Remarks/Precautions>

  • The rubber used in this product complies with the Food Sanitation Act.
  • Please contact us for non-standard specifications (diameter, length, etc.).
