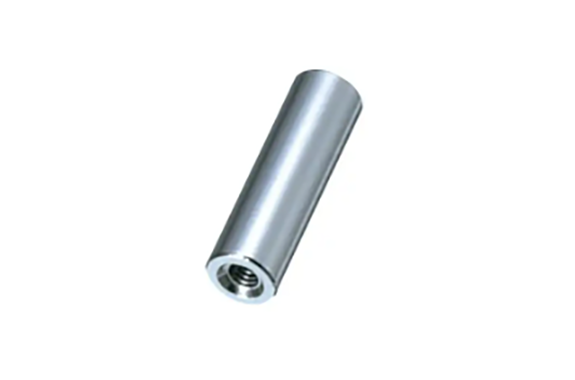

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ARF-400E

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	5	ARF-405E	Fully threaded
	6	ARF-406E
	7	ARF-407E
	8	ARF-408E
	9	ARF-409E
	10	ARF-410E
	11	ARF-411E
	12	ARF-412E
	13	ARF-413E
	14	ARF-414E
	15	ARF-415E
	16	ARF-416E	7.5
	17	ARF-417E	7.5
	18	ARF-418E	7.5
	19	ARF-419E	7.5
	20	ARF-420E	7.5
	twenty one	ARF-421E	7.5
	twenty two	ARF-422E	7.5
	twenty three	ARF-423E	7.5
	twenty four	ARF-424E	7.5
	twenty five	ARF-425E	7.5
	26	ARF-426E	7.5
	27	ARF-427E	7.5
	28	ARF-428E	7.5
	29	ARF-429E	7.5
	30	ARF-430E	7.5
	35	ARF-435E	7.5
	40	ARF-440E	7.5
	45	ARF-445E	7.5
	50	ARF-450E	7.5
	55	ARF-455E	7.5
	60	ARF-460E	7.5
