Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-500H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

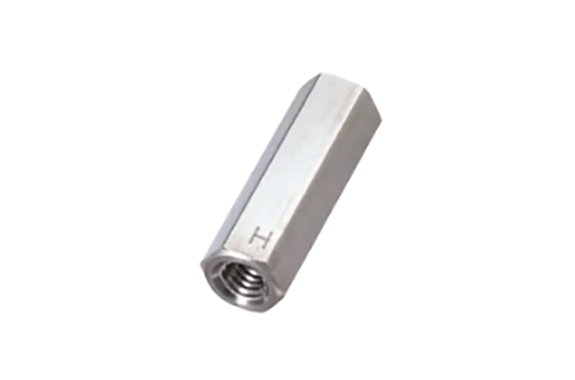

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	ASU-508H	Fully threaded
	10	ASU-510H
	12	ASU-512H
	15	ASU-515H
	18	ASU-518H
	20	ASU-520H
	twenty five	ASU-525H	10
	30	ASU-530H	10
	35	ASU-535H	10
	40	ASU-540H	10
	45	ASU-545H	10
	50	ASU-550H	10
	55	ASU-555H	10
	60	ASU-560H	10
	65	ASU-565H	10
	70	ASU-570H	10
	75	ASU-575H	10
	80	ASU-580H	10
	85	ASU-585H	10
	90	ASU-590H	10
	95	ASU-595H	10
	100	ASU-5100H	10
	110	ASU-5110H	10
	120	ASU-5120H	10
	125	ASU-5125H	10
	130	ASU-5130H	10
	140	ASU-5140H	10
	150	ASU-5150H	10
