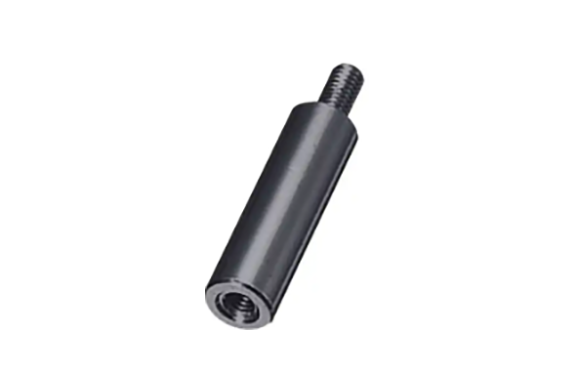

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BRL-1700BE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M1.7 (0.35)	4	BRL-1704BE	2.5
	4.5	BRL-1704.5BE	2.5
	5	BRL-1705BE	3
	5.5	BRL-1705.5BE	3
	6	BRL-1706BE	4
	6.5	BRL-1706.5BE	4
	7	BRL-1707BE	5
	7.5	BRL-1707.5BE	5
	8	BRL-1708BE	5
	8.5	BRL-1708.5BE	5
	9	BRL-1709BE	5
	9.5	BRL-1709.5BE	5
	10	BRL-1710BE	5
	11	BRL-1711BE	5
	12	BRL-1712BE	5
	12.5	BRL-1712.5BE	5
	13	BRL-1713BE	5
	14	BRL-1714BE	5
	15	BRL-1715BE	5
	16	BRL-1716BE	5
	16.5	BRL-1716.5BE	5
	17	BRL-1717BE	5
	17.5	BRL-1717.5BE	5
	18	BRL-1718BE	5
	19	BRL-1719BE	5
	20	BRL-1720BE	5
	21	BRL-1721BE	5
	22	BRL-1722BE	5
	23	BRL-1723BE	5
	24	BRL-1724BE	5
	25	BRL-1725BE	5
	26	BRL-1726BE	5
	27	BRL-1727BE	5
	28	BRL-1728BE	5
	29	BRL-1729BE	5
	30	BRL-1730BE	5
