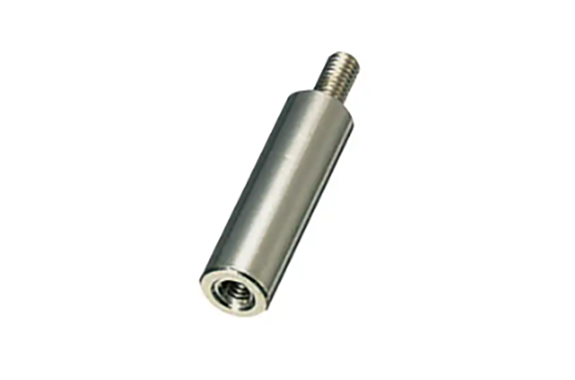

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BRL-300KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	BRL-304KE	2.5
	4.5	BRL-304.5KE	2.5
	5	BRL-305KE	3.5
	5.5	BRL-305.5KE	3.5
	6	BRL-306KE	4
	6.5	BRL-306.5KE	4
	7	BRL-307KE	5
	7.5	BRL-307.5KE	5
	8	BRL-308KE	6
	8.5	BRL-308.5KE	6
	9	BRL-309KE	6
	9.5	BRL-309.5KE	6
	10	BRL-310KE	6
	11	BRL-311KE	6
	12	BRL-312KE	6
	12.5	BRL-312.5KE	6
	13	BRL-313KE	6
	14	BRL-314KE	6
	15	BRL-315KE	6
	16	BRL-316KE	6
	16.5	BRL-316.5KE	6
	17	BRL-317KE	6
	17.5	BRL-317.5KE	6
	18	BRL-318KE	6
	19	BRL-319KE	6
	20	BRL-320KE	6
	twenty one	BRL-321KE	6
	twenty two	BRL-322KE	6
	twenty three	BRL-323KE	6
	twenty four	BRL-324KE	6
	twenty five	BRL-325KE	6
	26	BRL-326KE	6
	27	BRL-327KE	6
	28	BRL-328KE	6
	29	BRL-329KE	6
	30	BRL-330KE	6
	35	BRL-335KE	6
	40	BRL-340KE	6
	45	BRL-345KE	6
	50	BRL-350KE	6
	55	BRL-355KE	6
	60	BRL-360KE	6
