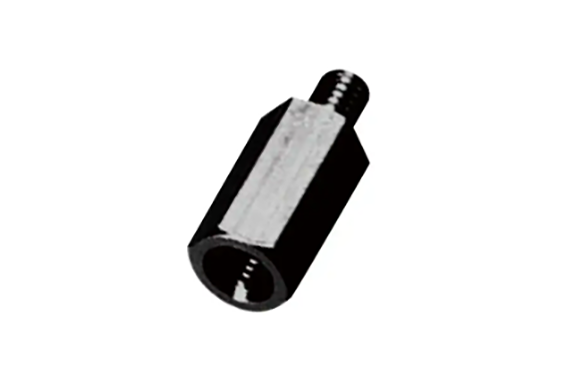

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: MSL-300-03BE

Specification

Material

Lead-free free-cutting aluminum (CB156)
Lead content 10 ppm or less

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	5	MSL-305-03BE	3.5
	5.5	MSL-305.5-03BE	3.5
	6	MSL-306-03BE	4
	6.5	MSL-306.5-03BE	4
	7	MSL-307-03BE	5
	7.5	MSL-307.5-03BE	5
	8	MSL-308-03BE	6
	8.5	MSL-308.5-03BE	6
	9	MSL-309-03BE	6
	9.5	MSL-309.5-03BE	6
	10	MSL-310-03BE	6
	10.5	MSL-310.5-03BE	6
	11	MSL-311-03BE	6
	11.5	MSL-311.5-03BE	6
	12	MSL-312-03BE	6
	12.5	MSL-312.5-03BE	6
	13	MSL-313-03BE	6
	13.5	MSL-313.5-03BE	6
	14	MSL-314-03BE	6
	14.5	MSL-314.5-03BE	6
	15	MSL-315-03BE	6
	15.5	MSL-315.5-03BE	6
	16	MSL-316-03BE	6
	16.5	MSL-316.5-03BE	6
	17	MSL-317-03BE	6
	17.5	MSL-317.5-03BE	6
	18	MSL-318-03BE	6
	18.5	MSL-318.5-03BE	6
	19	MSL-319-03BE	6
	19.5	MSL-319.5-03BE	6
	20	MSL-320-03BE	6
