Manufacturer: Hirosugi Instruments Co., Ltd.

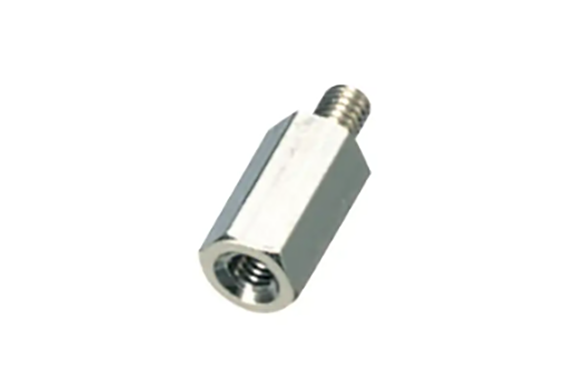

Model: MSU-300-04

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	5	MSU-305-04	3
	5.5	MSU-305.5-04	3.5
	6	MSU-306-04	4
	6.5	MSU-306.5-04	4.5
	7	MSU-307-04	5
	7.5	MSU-307.5-04	5.5
	8	MSU-308-04	6
	8.5	MSU-308.5-04	6
	9	MSU-309-04	6
	9.5	MSU-309.5-04	6
	10	MSU-310-04	6
	10.5	MSU-310.5-04	6
	11	MSU-311-04	6
	11.5	MSU-311.5-04	6
	12	MSU-312-04	6
	12.5	MSU-312.5-04	6
	13	MSU-313-04	6
	13.5	MSU-313.5-04	6
	14	MSU-314-04	6
	14.5	MSU-314.5-04	6
	15	MSU-315-04	6
	15.5	MSU-315.5-04	6
	16	MSU-316-04	6
	16.5	MSU-316.5-04	6
	17	MSU-317-04	6
	17.5	MSU-317.5-04	6
	18	MSU-318-04	6
	18.5	MSU-318.5-04	6
	19	MSU-319-04	6
	19.5	MSU-319.5-04	6
	20	MSU-320-04	6
	twenty one	MSU-321-04	6
	twenty two	MSU-322-04	6
	twenty three	MSU-323-04	6
	twenty four	MSU-324-04	6
	twenty five	MSU-325-04	6
	26	MSU-326-04	6
	27	MSU-327-04	6
	28	MSU-328-04	6
	29	MSU-329-04	6
	30	MSU-330-04	6
