Japan, Kansai Electric Heat Corp
Kansai Electric Heat Corp B-Type Series T.S.K Hot-air Generator
Made in Japan
Manufacturer: Kansai Electric Heat Corp
Model: B-Type Series
Features
Continuous use max. hot-air temp. 300ﾟC (350ﾟC when the auto-temp controller TRT is used.)
Heatproof blower for the hot-air can be circulated is equipped to the all type. (Energy saving !)
(Hot-air circulation temp. TSK-17B : 140ﾟC, TSK-22B – 132B : 230ﾟC)
Each sensor for the safety circuit is built. (Electronic safety circuit is adopted.)
(High reliability thermocouple is adopted to the each safety circuit.)

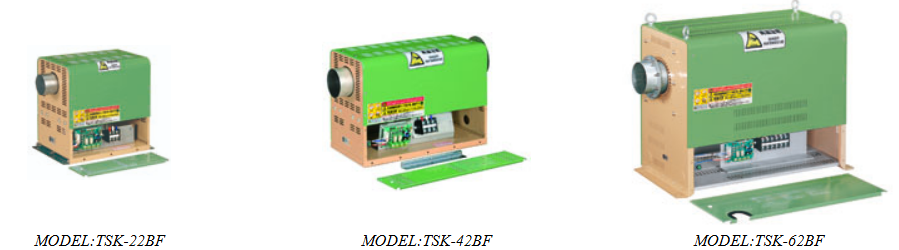

Each blowerless type (only heater) is prepared.
Safety circuit power supply lamp with the buzzer is equipped.
Specification
| Model | Type | Power | Heater capacity | Continuous use | Motor capacity | Max. air volume | Max. static pressure |
| max. temp. | (m3/min) | (kPa) | |||||
| 50/60Hz | 50/60Hz | ||||||
| TSK-17B | 3200-5-008Y | 3-phase | 5kW | 300ﾟC | 80W | 2.6/3.1 | 0.67/0.95 |
| 380V, | |||||||

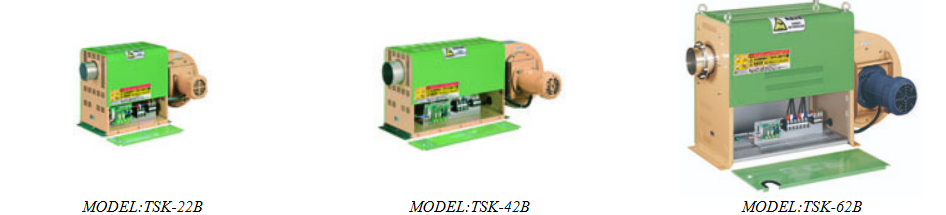

| TSK-22B | 3380~440-3-013YA-LB | 400V, | 3kW | 130W | 4.6/4.6 | 0.85/1.20 | |
| 3380~440-5-013YA-LB | 415V, | 5kW | |||||
| TSK-32B | 3380~440-7.5-013YA-LB | 440V | 7.5kW | ||||
| TSK-42B | 3380~440-8-025Y-LB | 50/60Hz | 8kW | 250W | 7.2/7.5 | 1.10/1.52 | |
| TSK-52B | 3380~440-10-025Y-LB | 10kW | |||||
| 3380~440-15-025Y-LB | 15kW | ||||||
| TSK-62B | 3380~440-15-075Y-LB | 3-phase | 15kW | 750W | 15.7/11.6 | 1.75/2.40 | |
| TSK-72B | 3380~440-20-075Y-LB | 380V, | 20kW | ||||
| TSK-82B | 3380~440-30-1.5Y-LB | 400V, | 30kW | 1.5kW | 24.1/23.3 | 2.00/2.83 | |
| TSK-92B | 3380~440-35-2.2Y-LB | 415V | 35kW | 2.2kW | 34.8/29.1 | 2.8/3.9 | |
| TSK-102B | 3380~440-45-2.2Y-LB | 50/60Hz,440V | 45kW | ||||
| TSK-122B | 3380~440-60-3.7Y-LB | 60Hz | 60kW | 3.7kW | 49/37 | 3.5/5.1 | |
| TSK-132B | 3380~440-80-5.5Y-LB | 80kW | 5.5kW | 60/45 | 4.1/6.0 |
| Model | Type | Power | Heater capacity | Continuous use | Motor capacity | Max. air volume | Max. static pressure |
| max. temp. | (m3/min) | (kPa) | |||||
| 50/60Hz | 50/60Hz | ||||||

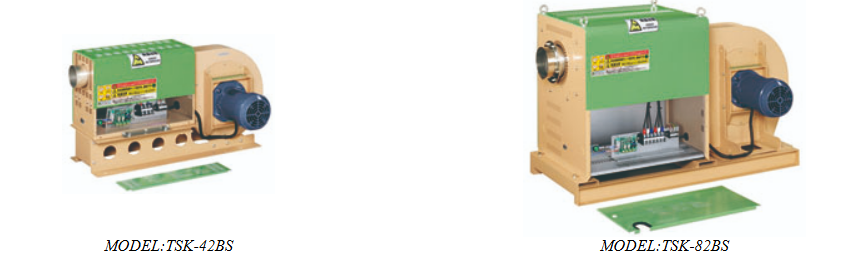

| TSK-42BS | 3380~440-8-075SY-LB | 3-phase | 8kW | 300ﾟC | 750W | 11.5/11.6 | 1.75/2.40 |
| 380V, | |||||||
| 400V, | |||||||
| 415V | |||||||
| TSK-52BS | 3380~440-10-075SY-LB | 50/60Hz, | 10kW | ||||
| 3380~440-15-075SY-LB | 15kW | ||||||
| TSK-62BS | 3380~440-15-1.5SY-LB | 440V | 15kW | 1.5kW | 20.9/23.2 | 1.95/2.72 | |
| TSK-72BS | 3380~440-20-1.5SY-LB | 60Hz | 20kW | ||||
| TSK-82BS | 3380~440-30-2.2SY-LB | 30kW | 2.2kW | 30.6/29.0 | 2.7/／3.80 |
| Model | Type | Power | Heater capacity | Continuous use | Motor capacity | Max. air volume | Max. static pressure |
| max. temp. | (m3/min) | (kPa) | |||||
| 50/60Hz | 50/60Hz | ||||||
| TSK-24BP | 3200-3-04PY-LB | 3-phase | 3kW | 300ﾟC | 400W | 4.5 | 3.4 |
| 3200-5-04PY-LB | 200V | 5kW | |||||
| 3200-7.5-04PY-LB | 7.5kW | ||||||
| TSK-56BP | 3200-9-1.5PY-LB | 9kW | 1500W | 16.5 | 5.9 | ||
| (Order) | 3200-12.5-1.5PY-LB | 12.5kW | |||||
| TSK-72BP | 3200-15-2.2PY-LB | 15kW | 2200W | 20.3 | 6.5 | ||
| (Order) | 3200-20-2.2PY-LB | 20kW |
