- Kansai Electric Heat Corp HJ-15 Platinum Catalytic Oxidation-Type Deodorization Device
Japan, Kansai Electric Heat Corp

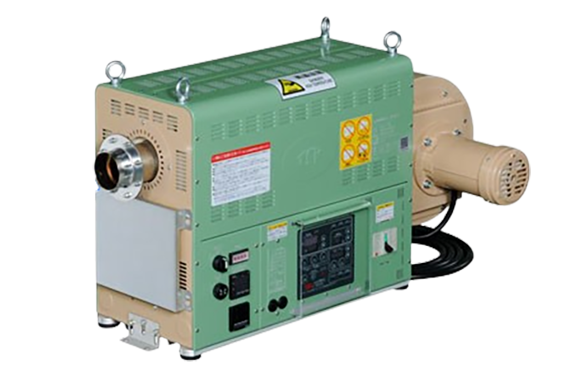

Kansai Electric Heat Corp HJ-15 Platinum Catalytic Oxidation-Type Deodorization Device
Made in Japan
Manufacturer: Kansai Electric Heat Corp
Model: HJ-15
Features
The HJ-15 deodorization device has a semi-permanent lifespan thanks to its platinum honeycomb catalyst (catalyst life > 5 years). It offers high safety and cost-efficiency with its compact size (less than 1/10th of direct combustion) and lower processing temperature (about 300°C).
The heater circuit automatically turns off if the oxidation reaction temperature exceeds 500°C, triggering a warning buzzer and a normally closed contact output from the built-in service terminal if it surpasses 550°C.
Specification
| Platinum catalytic oxidation-type deodorization device | ||
| Model | HJ-15 | |
| Type | 3200-8.5C-013YA-LB-HJ | 3200-8.5C-025Y-LB-HJ |
| Power | 3-phase 380V, 400V, 415V 440V 50/60Hz | |
| Heater capacity | 8.5kW | |
| Processing temp. | 300ﾟC – 350ﾟC (Recommendation temp.) | |
| Bore of Outlet ･ Inlet | φ75mm pipe | φ75mm pipe ･ φ100mm pipe |
| Processing air volume | 1.5Nm3/min (SV45000hr-1) | |
| Max. static pressure | 1.2kPa | 1.52kPa |
| Suction air temp. of the blower | 0ﾟC – less than +230ﾟC | |
| Blower type ･ Motor capacity | YU-130M ･ 130W | YU-250M ･ 200W |
| Inlet demister filter | DF-22S | DF-41S |
| Price | JPY 1,032,900 | JPY 1,085,700 |
