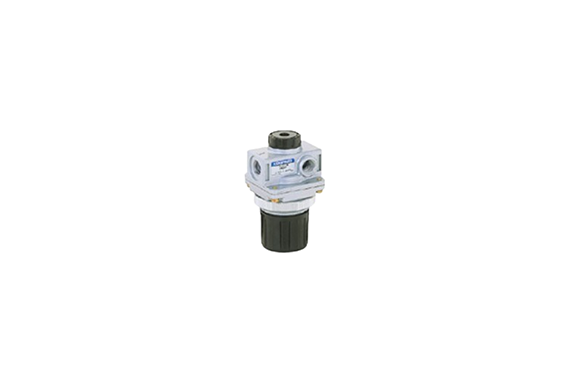

Koganei Clean System Precision Regulator CS-PR200
Manufacturer: KOGANEI CORPORATION
Features
This compact precision regulator offers exceptionally fine pressure settings, with a sensitivity of 0.001 MPa. As a result, it delivers highly accurate pressure control, ensuring optimal performance for precision applications.
Specifications
| Item | Model | PR200 |
|---|---|---|
| Media | Air | |
| Port size | Rc | 1/4 |
| Sensitivity | MPa [psi] | 0.001 [0.15] |
| Pressure setting range | MPa [psi] | 0.005~0.25 [7~36] |
| Maximum operating pressure | MPa [psi] | 0.73 [106] |
| Proof pressure | MPa [psi] | 1.03 [149] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5~60 [41~140] |
| Air consumption | ℓ /min [ft³/min] (ANR) | 5 [0.18] |
| Lubrication | Not required | |
| Mass | kg [lb.] | 0.29 [0.64] |
| Materials | Body | Aluminum die-casting |
