KOGANEI CORPORATION

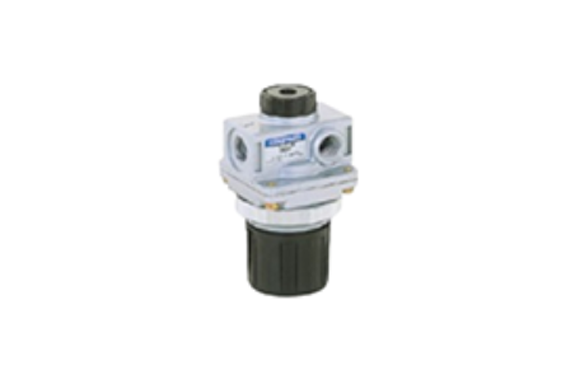

Koganei CS-PR200 Precision Regulator
Manufacturer: KOGANEI CORPORATION
Model: CS-PR200
Features
For applications requiring exact control, our compact precision regulator provides the ultimate solution. This unit allows for extremely fine pressure settings because it operates at a sensitivity of 0.001 MPa. Consequently, you can achieve stable and repeatable performance even in highly sensitive processes. Moreover, this regulator maintains its accuracy while preserving a compact footprint to save valuable space in your assembly.
Specifications
| Model | PR200 | |
|---|---|---|
| Media | Air | |
| Port size | Rc | 1/4 |
| Sensitivity | MPa [psi.] | 0.001 [0.15] |
| Pressure setting range | MPa [psi.] | 0.005 ~ 0.25 [0.73 ~ 36] |
| Maximum operating pressure | MPa [psi.] | 0.73 [106] |
| Proof pressure | MPa [psi.] | 1.03 [149] |
| Operating temperature range | °C [°F] | 5 ~ 60 [41 ~ 140] |
| Air consumption | ℓ/min [ft³/min.] (ANR) | 5 [0.18] |
| Lubrication | – | Not required |
| Mass | kg [lb.] | 0.29 [0.64] |
| Material | Aluminum die-casting | |
