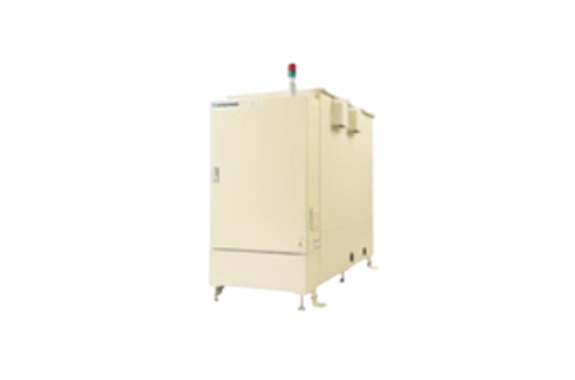

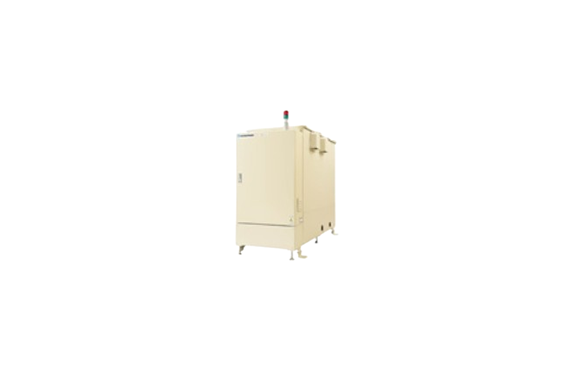

Koganei DB Scale Separator

Manufacturer: KOGANEI CORPORATION

Features

This system uses a dielectric breakdown electrolysis method with a titanium plate electrode, and it benefits from both Japanese and international patent protection. As a result, the design delivers advanced and reliable electrolysis performance. Moreover, the unique characteristics of the titanium electrode enable separation and removal of even ionized silica, which conventional systems struggle to eliminate. Therefore, the system achieves higher purification efficiency.

In addition, the process operates without using chemicals, and this approach prevents equipment damage while extending overall service life. Furthermore, chemical free operation removes concerns about emission control related to chemically treated water. Consequently, the system supports safer operation, lower maintenance requirements, and long term environmental compliance.

Specifications

Item	Model	DBSS100C	DBSS50C	DBSS50A-2W	DBSS50A-9W	DBSS50A-5W
Outer dimensions	mm [in]	1802 × 860 × 1396 [71 × 33.9 × 55]	1396 × 860 × 1396 [55 × 33.9 × 55]	739 × 727 × 1307 [29.1 × 28.6 × 51]	834 × 700 × 1200 [25.0 × 27.6 × 47]	510 × 526 × 991 [20.1 × 20.7 × 39.0]
Dry mass	kg [lb]	430 [948.0]	315 [694.5]	170 [374.8]	130 [286.6]	73 [160.937]
Total water volume in tank	ℓ	470	325	160	160	32
Drained amount	ℓ/day	645	510	160	160	32
Main unit connection port	IN	1-inch 25A barb fitting		1/2-inch 15A barb fitting	Rc 1/2-inch 15A	1/2-inch 15A barb fitting
	OUT	2-inch 50A barb fitting		1-1/4-inch 32A barb fitting	Rc 1-inch 25A	1-inch 25A barb fitting
	Drain	2-inch 50A barb fitting × 2		1-1/4-inch 32A barb fitting	1-1/4-inch 32A barb fitting	1-inch 25A barb fitting
Input current		Single phase 200 VAC 50/60Hz
Consumption power	kW	0.6	0.5	0.3	0.3	0.15
Annual component removal volume^Note	kg [lb]	100 [220.5]	50 [110.231]	25 [55.116]		5 [11.023]
