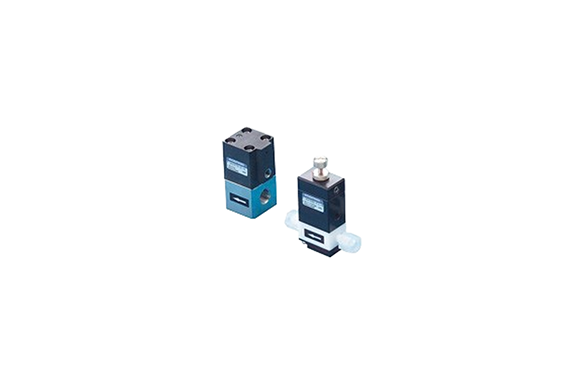

Compact series line-up suitable for control of small chemical flows now offers even more variety.
In addition to diverse piping specifications and valve functions, the line-up offers a wide selection of options, such as automatic flow adjustment.
Specifications
| Item | Model |
|---|---|
| Media | Pure water, chemicals, air, N2 |
| Operating temp. range (°C [°F]) | 5~60 [41~140] |
| Operating pressure range (MPa [kgf/cm²] [psi]) | A→B: 0～0.2 [0～2.0] [0～29], B→A: 0～0.1 [0～1.0] [0～15] |
| Pilot pressure (MPa [kgf/cm²] [psi]) | 0～0.1 [0～1.0] [0～15] |
| Back pressure (MPa [kgf/cm²] [psi]) | 0～0.1 [0～1.0] [0～15] |
| Proof pressure (MPa [kgf/cm²] [psi]) | 1.0 [10] [145] |
| Orifice (Cv) (mm) | 1.00.02 |
| Pilot connection port size | M5 x 0.8 |
| Leakage at valve seat (cm³/min [in³/min]) | 0 [0] |
| Operating frequency (c.p.m.) | 30 or less |
| Mounting direction | Any |
