This compact series lineup supports precise control of small chemical flows, and it now delivers even greater variety to meet diverse application needs. In addition, the expanded lineup increases flexibility, which allows users to select the most suitable configuration with ease. Moreover, the system supports a wide range of piping specifications and valve functions, so it adapts smoothly to different process requirements. Furthermore, the lineup includes advanced options such as automatic flow adjustment, which improves control accuracy and enhances overall process efficiency.
Kimoto Rubber Industry Co., KOGANEI CORPORATION

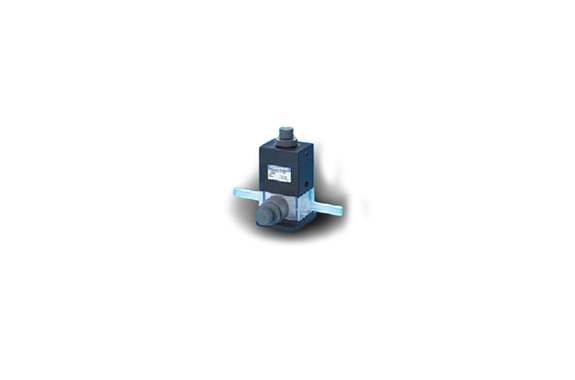

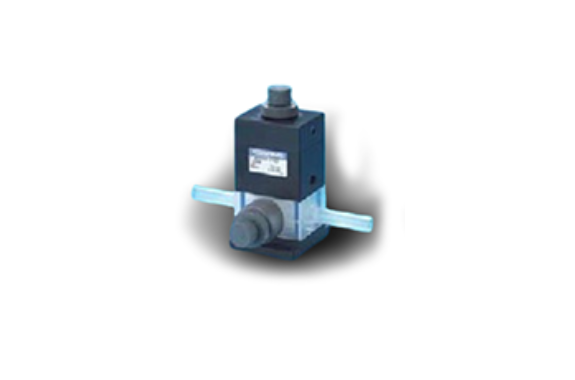

Koganei Large Flow Series Air Operated Valve F-AVP500, 750

Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Model | Operating temperature range °C [°F] | Operating pressure range MPa [kgf/cm²] [psi] | Orifice mm (Cv) | Port size | |||
| Media | Atmosphere | A→B | B→A | Main | Operating port | ||
| F-AVP500 | 5~60 [41~140] | 0~50 [32~122] | 0~0.5 (0~5.1) [0~73] | 0~0.3 (0~3.1) [0~44] | 12Nozzle (2.5) | Outer dia. 1/2″ tube | Rc1/8 |
| F-AVP750 | 5~60 [41~140] 5~100 [41~212]Note 1 | 20Nozzle (7.0) | Outer dia. 3/4″ tube | ||||
