KOGANEI CORPORATION

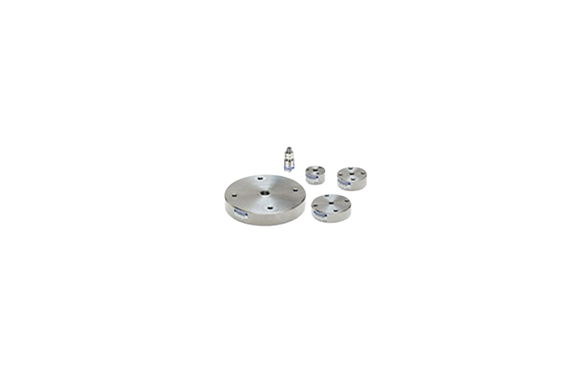

Koganei Non-Contact Transfer Components NCTN Series
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Model | |||||
|---|---|---|---|---|---|---|
| NCTN10N NCTN10GR1 | NCTN20N NCTN20GR1 | NCTN30N NCTN30GR1 | NCTN40N NCTN40GR1 | NCTN60N NCTN60GR1 | NCTN80N NCTN80GR1 | |
| Media | Air | Air | Air | Air | Air | Air |
| Port size | M3×0.5 | M5×0.8 | M5×0.8 | Rc1/8 | Rc1/8 | Rc1/8 |
| Operating pressure range MPa [psi] | 0.1 ~ 0.5 [15 to 73] | 0.1 ~ 0.5 [15 to 73] | 0.1 to 0.7 [15 to 102] | 0.1 to 0.7 [15 to 102] | 0.1 to 0.7 [15 to 102] | 0.1 to 0.7 [15 to 102] |
| Operating temperature range °C [°F] | 5 to 60 [41 to 140] | 5 to 60 [41 to 140] | 5 to 60 [41 to 140] | 5 to 60 [41 to 140] | 5 to 60 [41 to 140] | 5 to 60 [41 to 140] |
| Lifting forceNote N [lbf] | 0.9 [0.20] | 2.5 [0.56] | 3.3 [0.74] | 3.9 [0.87] | 9.0 [2.02] | 10.25 [2.25] |
| Consumption flow rateNote L/min [ft3/min] (ANR) | 65 [2.30] | 130 [4.59] | 180 [6.35] | 250 [8.83] | 330 [11.65] | 350 [12.35] |
| Mass g [oz.] | 10.05 [0.35] | 30.1 [1.06] | 68.40 [2.40] | 124.4 [4.43] | 359 [12.66] | 610 [21.52] |
| Material of main parts | Stainless steel | |||||
