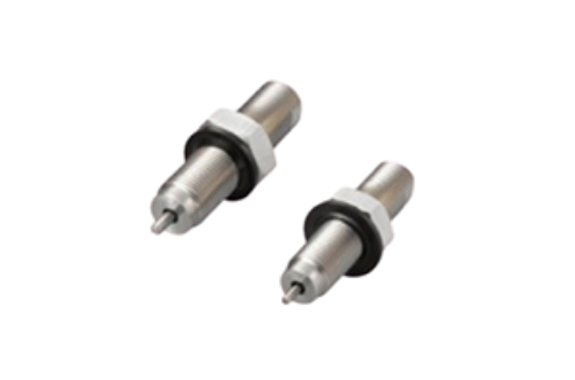

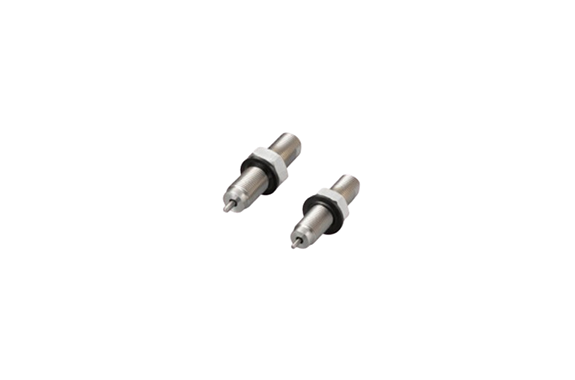

Koganei Pressure Resistant Shock Absorbers Linear Orifice Type KSHK Series
Manufacturer: KOGANEI CORPORATION
Features
Enhance your production efficiency with our advanced linear and multi-orifice shock absorbers. Because these units provide effective shock absorption, you can significantly shorten cycle times. Furthermore, the adjustable linear orifice type allows for fine-tuning based on impact speed. This design actively prevents equipment damage. Additionally, the silicon-free construction ensures low particle generation to meet JIS ISO Class 5 cleanliness standards. Since our products offer more than 3 million operations, they deliver long-term reliability. Moreover, these components comply with H1 food equipment specifications. Consequently, you can rely on them for high-speed, hygienic environments.
Specifications
| Item / Model | KSHK10×5-01 | KSHK10×5-02 | KSHK12×6-01 | KSHK12×6-02 |
| Maximum absorption capacity J [ft·lbf] | 0.4 [0.295] | 0.5 [0.369] | 0.8 [0.590] | 0.6 [0.443] |
| Absorption stroke mm [in] | 5 [0.197] | 6 [0.236] | ||
| Maximum impact speed m/s [ft/sec] | 0.5 [1.640] | 0.8 [2.624] | 0.5 [1.640] | 0.8 [2.624] |
| Maximum operating frequency cycle/min | 30 | |||
| Operating pressure range MPa [psi] | 0 ~ 0.7 [0 ~ 102] | |||
| Maximum absorption per unit of time J/min | 8 | 12 | ||
| Spring return force N [lbf] | 8.3 | 14.5 | ||
| Angle variation | 1° or less | |||
| Operating temperature range °C [°F] | 0 ~ 60 [32 ~ 140] | |||
| Item / Model | KSHK14×7-01 | KSHK14×7-02 | KSHK16×8-01 | KSHK16×8-02 |
| Maximum absorption capacity J [ft·lbf] | 1.0 [0.738] | 1.0 [0.738] | 1.6 [1.180] | 1.3 [0.959] |
| Absorption stroke mm [in] | 7 [0.276] | 8 [0.315] | ||
| Maximum impact speed m/s [ft/sec] | 0.5 [1.640] | 0.8 [2.624] | 0.5 [1.640] | 0.8 [2.624] |
| Maximum operating frequency cycle/min | 30 | |||
| Operating pressure range MPa [psi] | 0 ~ 0.7 [0 ~ 102] | |||
| Maximum absorption per unit of time J/min | 18 | 26 | ||
| Spring return force N [lbf] | 13.0 [2.923] | 13.5 [3.035] | ||
| Angle variation | 1° or less | |||
| Operating temperature range °C [°F] | 0 ~ 60 [32 ~ 140] | |||
| Item / Model | KSHK18×9-01 | KSHK18×9-02 | KSHK20×10-01 | KSHK20×10-02 |
| Maximum absorption capacity J [ft·lbf] | 2.5 [1.844] | 2.9 [2.139] | 5.0 [3.688] | 4.8 [3.540] |
| Absorption stroke mm [in] | 9 [0.354] | 10 [0.394] | ||
| Maximum impact speed m/s [ft/sec] | 0.5 [1.640] | 0.8 [2.624] | 0.5 [1.640] | 0.8 [2.624] |
| Maximum operating frequency cycle/min | 30 | |||
| Operating pressure range MPa [psi] | 0 ~ 0.7 [0 ~ 102] | |||
| Maximum absorption per unit of time J/min | 50 | 90 | ||
| Spring return force N [lbf] | 27.0 [6.070] | 29.0 [6.519] | ||
| Angle variation | 1° or less | 3° or less | ||
| Operating temperature range °C [°F] | 0 ~ 60 [32 ~ 140] | |||
