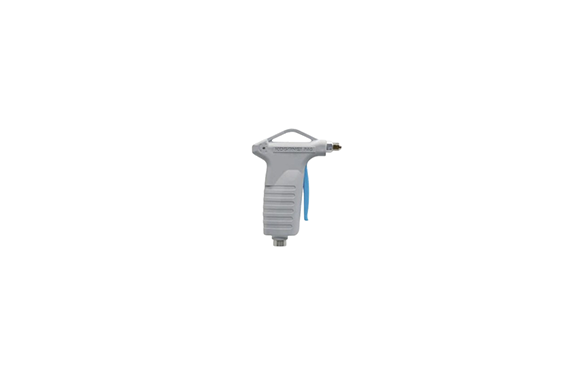

Koganei Pulse Blow Air Gun PAG Series
Manufacturer: KOGANEI CORPORATION
Features
The air volume is nearly 4.5 times larger than that of a standard nozzle. Notably, the flow consumption remains the same as the standard nozzle with a diameter of φ3 (0.118 in.).
Additionally, the standard nozzle offers orifice diameters of φ2 mm (0.079 in.), φ3 mm (0.118 in.), and φ4 mm (0.157 in.). For extended reach, the long nozzle has an orifice diameter of φ2.3 mm (0.091 in.), available in lengths of 170 mm (6.693 in.) and 220 mm (8.661 in.).
Specifications
| Item | Model |
|---|---|
| PAG-□ | – |
| Medium | Air1 |
| Lubrication | No |
| Operating pressure range | MPa [psi]: 0.35 to 0.7 [51 to 102] |
| Operating temperature range | °C [°F]: 5 to 50 [41 to 122] |
| Pulse frequency | Hz: 5 to 15 |
| Port size | Piping side: Rc1/4 Nozzle side: G1/8 |
| Nozzle diameter2 | mm [in.]: Standard nozzle: φ2 [0.079], φ3 [0.118], φ4 [0.157] Long nozzle: φ2.3 [0.091] Air amplifier nozzle: φ3 [0.118] |
| Mass | g [oz.]: 194 [6.84] (main unit only) |
| Material | Main unit cover: PBT resin Lever: POM resin |
