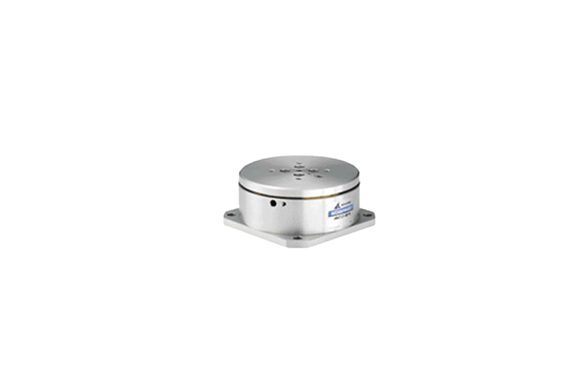

Koganei Rotary Actuators RWT Series
Manufacturer: KOGANEI CORPORATION
Features
Air-Operated Index Table for Precise and Efficient Movement
The air-operated index table features an advanced air signal and ratchet mechanism that ensures the table rotates at a fixed angle and in a specific direction. As a result, the operation remains highly reliable and precise. This mechanism guarantees that the table aligns accurately with every cycle, boosting your system’s performance.
Compact, Lightweight, and High-Torque Performance
This model is designed to be thin, compact, and lightweight while delivering high torque. Consequently, it offers a 10x increase in allowable energy when compared to the previous model. Not only does this increase performance, but it also optimizes space in your work environment. The combination of these features enhances both efficiency and durability.
Optional Sensor Switch for Monitoring
Moreover, the sensor switch, which is available for operation checks, is optional. This provides added convenience for monitoring and ensures that your system remains functional and accurate over time.
Versatile Mounting Options
Additionally, locating dowel pin holes are strategically placed on both the top and bottom of the body. This feature makes installation quick and easy, allowing for flexible integration into various setups.
Specifications
| Item | ARWT10-45-R | ARWT10-45-L | ARWT10-60-R | ARWT10-60-L | ARWT10-90-R | ARWT10-90-L |
|---|---|---|---|---|---|---|
| Operation type | Double acting piston type (Gear and ratchet mechanism) | Double acting piston type (Gear and ratchet mechanism) | Double acting piston type (Gear and ratchet mechanism) | Double acting piston type (Gear and ratchet mechanism) | Double acting piston type (Gear and ratchet mechanism) | Double acting piston type (Gear and ratchet mechanism) |
| Effective torque1 N·m [ft·lbf] | 1.0 [0.74] | 1.0 [0.74] | 1.0 [0.74] | 1.0 [0.74] | 1.0 [0.74] | 1.0 [0.74] |
| Media | Air | |||||
| Operating pressure range MPa [psi] | 0.2〜0.6 [29〜87] | 0.2〜0.6 [29〜87] | 0.2〜0.6 [29〜87] | 0.2〜0.6 [29〜87] | 0.2〜0.6 [29〜87] | 0.2〜0.6 [29〜87] |
| Proof pressure MPa [psi] | 0.9 [131] | 0.9 [131] | 0.9 [131] | 0.9 [131] | 0.9 [131] | 0.9 [131] |
| Operating temperature range °C [°F] | 0〜60 [32〜140] | 0〜60 [32〜140] | 0〜60 [32〜140] | 0〜60 [32〜140] | 0〜60 [32〜140] | 0〜60 [32〜140] |
| Cushion | With shock absorber | |||||
| Swing angle range | 45°±0.2° | 60°±0.2° | 60°±0.2° | 90°±0.2° | 90°±0.2° | 90°±0.2° |
| Swing angle adjustment range2 ° | — | Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position | Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 90° position | Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 180° position | Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 180° position | Clockwise rotation end: ±5° referred to 0° position/Counterclockwise rotation end: ±5° referred to 180° position |
| Swing time adjustment range3 s/90° | — | 0.2〜1.0 | 0.2〜1.0 | 0.2〜1.0 | 0.2〜1.0 | 0.2〜1.0 |
| Allowable energy4 J [ft·lbf] | 0.050 [0.037] | 0.050 [0.037] | 0.050 [0.037] | 0.050 [0.037] | 0.050 [0.037] | 0.050 [0.037] |
| Allowable thrust load5 N [lbf] | 50 [11.2] | 50 [11.2] | 50 [11.2] | 50 [11.2] | 50 [11.2] | 50 [11.2] |
| Allowable moment6 N·m [ft·lbf] | 1.5 [1.1] | 1.5 [1.1] | 2.0 [1.5] | 2.5 [1.8] | 3.0 [2.2] | 3.5 [2.6] |
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent.) | |||||
| Port size | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 |
