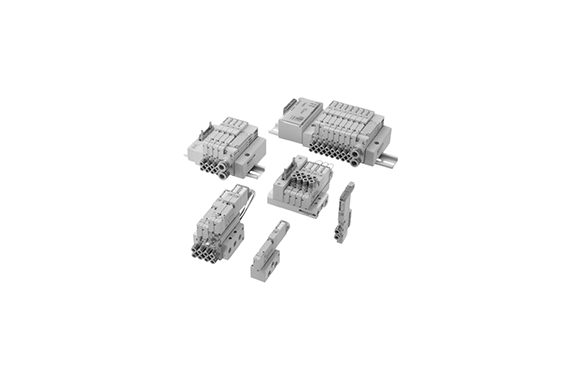

Koganei Solenoid Valves F10 Series
Manufacturer: KOGANEI CORPORATION
Features
1 Single or double dual use valve
● With the F series 2-position valves, you can use a manual override to select either the single solenoid valve or the double solenoid valve function.
2 Employs dual use fittings
● Koganei’s unique dual-use fittings can be connected to two different types of tubes with differing outer diameters.
● No need to waste time selecting fittings based on the tube size.
Mountable tube sizes:
F10 series: φ4 and φ6
F15 series: φ6 and φ8
F18 series: φ8 and φ10
3 Allows the fitting block to be changed for either base piping or direct piping
● Since the direction of the fitting blocks can be changed after purchase, the user is free to change the piping direction.
Specifications
| Item | Basic model | F10□T0 F10□T1 F10□T2 | F10□TA F10□T4 F10□T5 | F10□T0G F10□T1G F10□T2G | F10□T3G F10□T4G F10□T5G | F10□T0V F10□T1V F10□T2V | F10□T3V |
|---|---|---|---|---|---|---|---|
| Media | Air | ||||||
| Operation type | Internal pilot type | Internal pilot type | External pilot type (for positive pressure) | External pilot type (for vacuum) | |||
| Flow rate characteristics Sonic conductance C (dm³/s·bar) | 0.97 | 0.75 | 0.97 | 0.93 | 0.97 | 0.93 | |
| Effective area (mm²) [Cv] | 4.8 (0.27) | 4.6 (0.25) | 4.8 (0.27) | 4.6 (0.25) | 4.8 (0.27) | 4.6 (0.25) | |
| Port size | M5 × 0.8, 1/32UNF, dual use fitting for φ4 & φ6, Rc1/8, NPT1/8 | ||||||
| Lubrication | Not required | ||||||
| Operating pressure range – Main valve (MPa [psi]) | 0.2 ~ 0.7 MPa [29 ~ 102 psi] | 0 ~ 0.7 MPa [0 ~ 102 psi] | –100 kPa ~ 0.15 MPa [–29.53 in.Hg ~ 22 psi] | ||||
| Operating pressure range – External pilot (MPa [psi]) | — | 0.2 ~ 0.7 MPa [29 ~ 102 psi] | |||||
| Proof pressure MPa [psi] | 1.05 [152] | ||||||
| Response time (ms) 12VDC, 24VDC | 15/15/20 or below | 15/20/25 or below | 15/20/25 or below | 15/20 or below | 15/20 or below | 15/20 or below | |
| ON/OFF (100VAC) | 15/15 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | 15/20 or below | |
| Maximum operating frequency (Hz) | 5 | ||||||
| Minimum energizing time for self holding (ms) | 50 | ||||||
| Operating temperature range (°C [°F]) | 5 ~ 50 [41 ~ 122] | ||||||
| Shock resistance m/s² [G] | 294.2 [30] | ||||||
| Mounting direction | Any | ||||||
