Japan, LOBTEX
LOBTEX OW Offset Wrenches Double Box Ends
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: OW: OW89, OW810, OW1012, OW1013, OW1214, OW1317, OW1417, OW1719, OW1721, OW1921, OW1922, OW2123, OW2126, OW2224, OW2326, OW2427, OW2632, OW2730, OW3032, OWMM, OWISO
Newly developed for more stylish, lighter weight and sophisticated model!
Functions

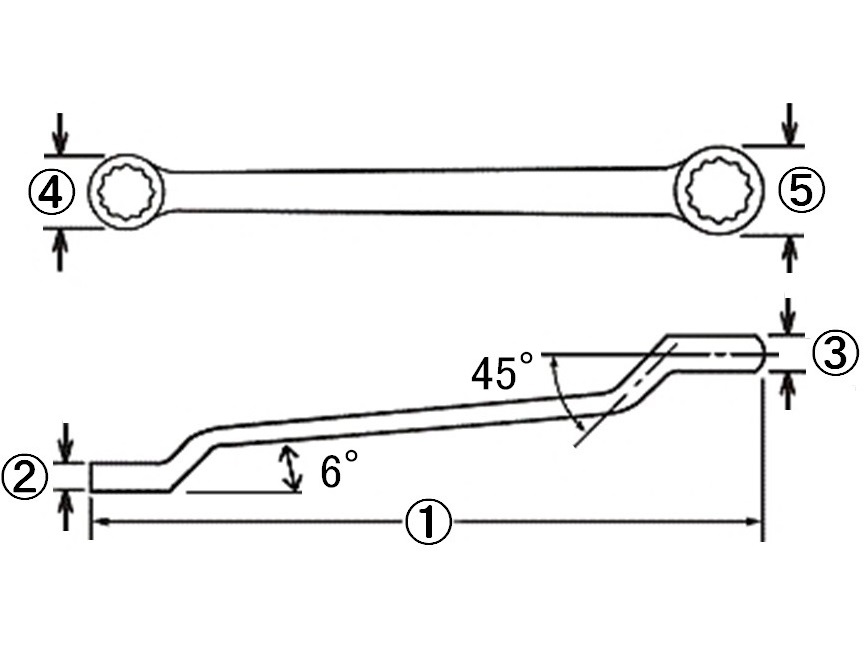

With the 45°x 6°angle, convenient at narrow space
10% lighter in weight compared with conventional model (except 30×32)
With surface contact(*), suitable for final tightening
* From linear to surface contact, avoid concentration of stress and reduce damage of the corner of bolt/nut. Then, achieve firm tightening.
Easy to grip, Hard to bent owing to its cross section shape!
For larger size (over 24 x 27), optimized with longer haft for easy to apply torque
Improved visibility with bigger size display
With satin finish, hard to slip in case of oil-stained
Specifications
Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | Retail/User prices | Remark |
---|---|---|---|---|---|---|---|---|
OW89 | 40g | 174mm | 5.5mm | 6.0mm | 13.0mm | 14.5mm | open price | size(mm) 8×9 |
OW810 | 45g | 179mm | 5.5mm | 6.5mm | 13.0mm | 16.0mm | open price | 8×10 |
OW1012 | 70g | 207mm | 6.5mm | 7.5mm | 16.0mm | 18.5mm | open price | 10×12 |
OW1013 | 70g | 208mm | 6.5mm | 8.5mm | 16.0mm | 19.5mm | open price | 10×13 |
OW1113 | 80g | 218mm | 7.0mm | 8.5mm | 17.5mm | 19.5mm | open price | 11×13 |
OW1214 | 100g | 226mm | 7.5mm | 9.5mm | 18.5mm | 21.0mm | open price | 12×14 |
OW1317 | 135g | 252mm | 8.5mm | 10.5mm | 19.5mm | 25.5mm | open price | 13×17 |
OW1417 | 140g | 253mm | 9.5mm | 10.5mm | 21.0mm | 25.5mm | open price | 14×17 |
OW1719 | 220g | 287mm | 10.5mm | 12.0mm | 25.5mm | 28.0mm | open price | 17×19 |
OW1721 | 250g | 308mm | 10.5mm | 13.0mm | 25.5mm | 31.0mm | open price | 17×21 |
OW1921 | 270g | 309mm | 12.0mm | 13.0mm | 28.0mm | 31.0mm | open price | 19×21 |
OW1922 | 280g | 320mm | 12.0mm | 13.5mm | 28.0mm | 32.5mm | open price | 19×22 |
OW2123 | 335g | 322mm | 13.0mm | 14.5mm | 31.0mm | 34.0mm | open price | 21×23 |
OW2126 | 405g | 354mm | 13.0mm | 16.0mm | 31.0mm | 38.0mm | open price | 21×26 |
OW2224 | 380g | 334mm | 13.5mm | 15.0mm | 32.5mm | 35.5mm | open price | 22×24 |
OW2326 | 410g | 356mm | 14.5mm | 16.0mm | 34.0mm | 38.0mm | open price | 23×26 |
OW2427 | 440g | 367mm | 15.0mm | 16.5mm | 35.5mm | 39.0mm | open price | 24×27 |
OW2632 | 630g | 412mm | 16.0mm | 18.0mm | 38.0mm | 47.0mm | open price | 26×32 |
OW2730 | 640g | 412mm | 16.5mm | 18.0mm | 39.5mm | 44.0mm | open price | 27×30 |
OW3032 | 795g | 460mm | 18.0mm | 18.0mm | 44.0mm | 47.0mm | open price | 30×32 |

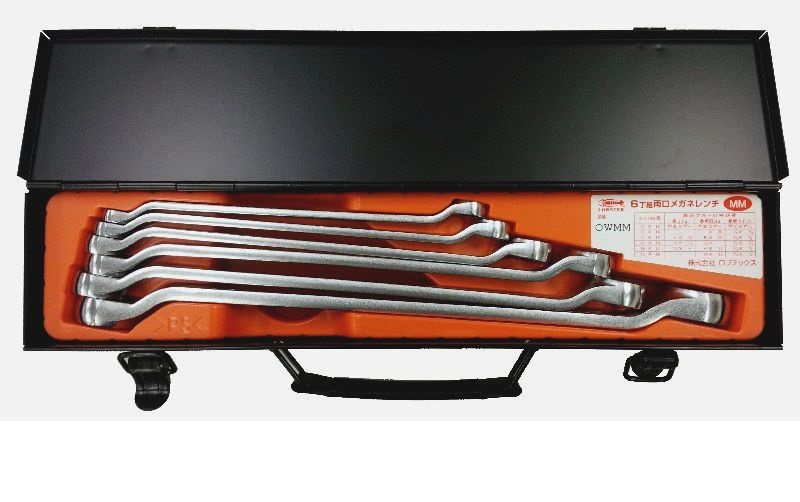

OWMM | open price | Contains 6pcs (10×12,12×14,14×17,17×19,19×21,23×26) / Metal case size: 100x400x45mm) | ||||||
OWISO | open price | Contains 6pcs (8×10,11×13,12×14,14×17,19×22,24×27) / Metal case size: 100x400x45mm) |
IMPORTANT SAFETY INSTRUCTIONS
Match the wrench size to the nut/bolt. Instead of extending the wrench, find the right tool. Wrenches are for turning, not hammering, so avoid using them as such. And never strike a wrench, as this can damage the tool and create a safety hazard.
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
