Japan, Matsumoto Kikai

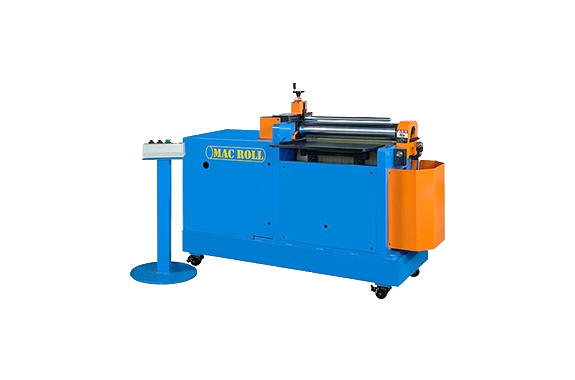

Matsumoto Kikai MUR-550/1050 Two hydraulic urethane bending rolls
Product Made in Japan
Manufacturer : Matsumoto Kikai
Model : MUR-550/1050
Easy operation, high-precision edge bending possible, no scratches on processed products
Specification
| Model | Bending plate thickness (mm) |
Effective roll width (mm) |
Standard upper roll diameter (mm) |
Motor (kW) | External dimensions (mm) width x depth x height |
weight (kg) |
|
|---|---|---|---|---|---|---|---|
| hydraulic | rotate | ||||||
| MUR-550 | (SS400) 2.3 | 550 | φ80～110 | 1.5 | 0.75 | 1470×1000×800 | 750 |
| MUR-1050 | (SS400) 2.3 | 1050 | φ140～180 | 1.5 | 2.2 | 2250×1200×1100 | 1600 |
Note) ●Specifications are subject to change without notice, so please inquire when placing an order.
●In addition to the above specifications, we can design according to your needs. Please contact us for details.
