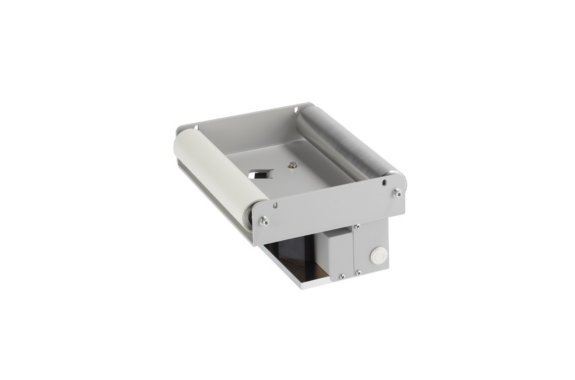

MITSUHASHI PGM-15 Small Roll Guide

Manufacturer: MITSUHASHI CORPORATION
Model: PGM-15

This system is used for controlling web trajectory during intermediate web transport processes. It is designed for use in combination with G-series controllers and sensors. Equipped with a brushless motor, it offers excellent maintainability and achieves high responsiveness and high-precision control. It is suitable for narrow webs with a width of 600mm or less and is ideal for controlling trajectory in packaging machines and sanitary product manufacturing machines.

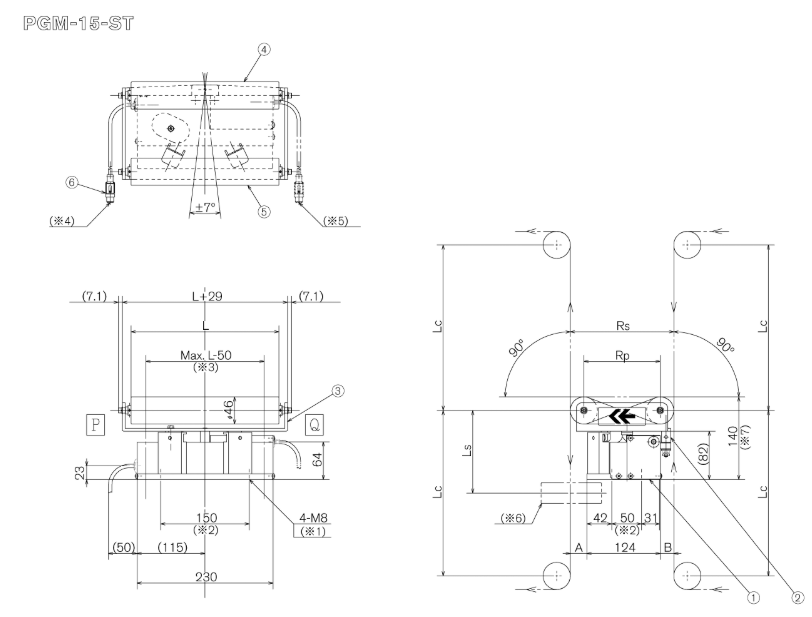

Drawing

① Drive unit
② Pivot stand
③ Roll frame
④ Inlet roll
⑤ Outlet roll
⑥ Peripheral device connection cable (length 0.5m)
*1: Screw-in depth 10mm or less *2: Mounting pitch *3: Sheet width *4: When exit is on the “P” side *5: When exit is on the “Q” side *6: Sensor (sold separately) *7: Roll height
L: Roll face length Rs: Distance between roll outer diameters Rp: Distance between roll cores Lc: Distance to fixed roll Ls: Distance to sensor　

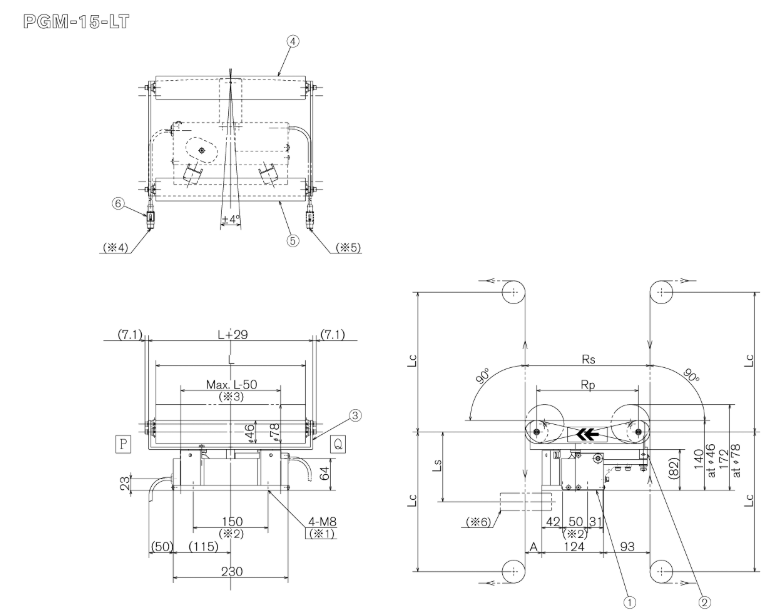

① Drive unit
② Pivot stand
③ Roll frame
④ Inlet roll
⑤ Outlet roll
⑥ Peripheral device connection cable (length 0.5m)
*1: Screw-in depth 10mm or less *2: Mounting pitch *3: Sheet width *4: When on the “P” side of the outlet *5: When on the “Q” side of the outlet *6: Sensor (sold separately)
L: Roll face length Rs: Distance between roll outer diameters Rp: Distance between roll cores Lc: Distance to fixed roll Ls: Distance to sensor

Features

We have adopted a maintenance-free brushless DC motor.
It incorporates a ball screw type ultra-compact actuator, allowing the roll frame to rotate powerfully and without any wobble.
The rotational torque of the roll frame is more than three times that of the conventional gear-type PG-100.
Combined with low backlash (less than 1/10 of conventional models), the roll frame is supported at three points by the pivot axis and two cam followers, resulting in a highly rigid roll frame.
The roll height is 28mm lower than conventional models, and the minimum span for overhead covering is 175mm (compared to 220mm previously), allowing for a more compact layout.
Since it connects to PEM-type controllers and PSM-type sensors using only connectors, wiring work is easy.

Specification

		Short Type (PGM-15-ST)				Long Type (PGM-15-LT)
power supply		DC24V±20% (supplied via CAN bus)
Current consumption		0.5A (at DC24V power supply voltage)
Scope of application	Roll surface length	150-650mm				200-650mm
	Roll diameter	Please inquire about φ46, φ78, and other special specifications.
	Rollspan	150mm	175mm	200mm	225mm	250mm	275mm	300mm	400mm
	*Correction amount 1**	±18mm	±19mm	±22mm	±25mm	±16mm	±18mm	±20mm	±27mm
	correction speed	17mm/s	18mm/s	21mm/s	24mm/s	13mm/s	14mm/s	15mm/s	21mm/s
	*Maximum web tension 2**	230N (Web width = 250mm)				280N (Web width = 450mm)
	Maximum web speed	300m/min
Roll material		Please inquire about other special specifications, including: aluminum rolls (with/without anodizing) , rubber rolls (white NBR) , CFRP (with/without rubber cork wrapping), and more.
Usage environment		Temperature: 0-40°C; Humidity: 80% Rh or less (non-condensing)
Mass (excluding roll and roll frame)		3.6kg
Connected devices	controller	PEM-200, PEM-3000
Connected devices	sensor	PSM type sensor
connection		Connect to the CAN bus using the included connector cable (included cable length: 0.5m). *A dedicated cable and branch connector are required to connect to the CAN bus. These can also be purchased separately from our company. Please refer to the PEM type controller catalog for connection configurations.
others		<Regarding the positioning method of the roll frame> – The center position is determined by a proximity switch, and the stroke end position is determined by an electronic counter (the position is set by the controller). It automatically moves to the center when the power is turned on. (Standard specifications) – A proximity switch for stroke end detection can be added as an option.
