Miyakawa MF Motor for Multi-axis Drill

Product Made in Japan
Manufacturer: Miyakawa
Model: MFS620, MFS825, MFS1525, MFL850-250, MFL1500-250, MFL1500-350, MFL2400-350

MF type overview

Features

  1. Numbers in each model indicate thrust and stroke.
  2. However, the oil pressure source was set to 3.0 MPa.
  3. We will respond to step feed type by special order as well.
  4. The MFS type is a short type with half built-in cylinder.
  5. Cutting feed can be adjusted steplessly by the float control valve.
MF type → MID type
MFL type Multi-axis attachment K type and
MID 40 type
MF Model Description
MF + MID + k type
Configuration example Multi-axis attachment K type + MID 40 drill unit + MFL type

accessories

  1. Advance end, rear end limit switch and dog
  2. Float control valve and dog plate for switching fast forward and cutting feed
  3. Front and rear iron plate covers
  4. Lubricating oil filler port

MFS 620 type

Performance specification

stroke max 200mm
Hydraulic cylinder φ50x200mm
Thrust (3.0MPa) 6000N
Hydraulic oil pressure max 4.0MPa
weight About 65kg

Geometry

Dimensional drawing of Model MFS620

MFS825 type

Performance specification

stroke max 250mm
Hydraulic cylinder φ63x250mm
Thrust (3.0MPa) 8500N
Hydraulic oil pressure max 4.0MPa
weight About 130kg

Geometry

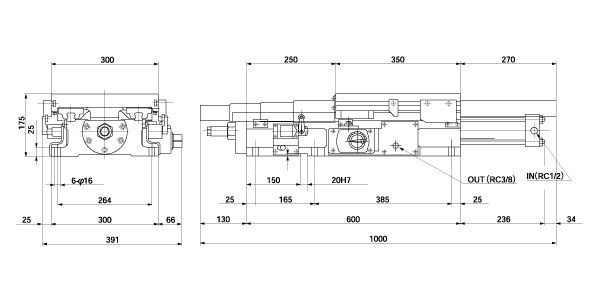

Dimensional drawing of Model MFS 825

MFS1525 type

Performance specification

stroke max 250mm
Hydraulic cylinder φ80x250mm
Thrust (3.0MPa) 15000N
Hydraulic oil pressure max 4.0MPa
weight About 140kg

Geometry

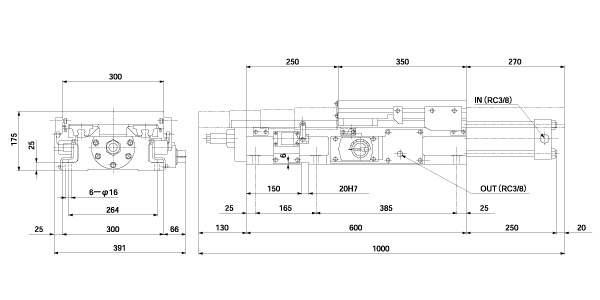

Dimensional drawing of model MFS1525

MFL 850-250

Performance specification

stroke max 250mm
Hydraulic cylinder φ63x250mm
Thrust (3.0MPa) 8500N
Hydraulic oil pressure max 4.0MPa
weight About 140kg

Geometry

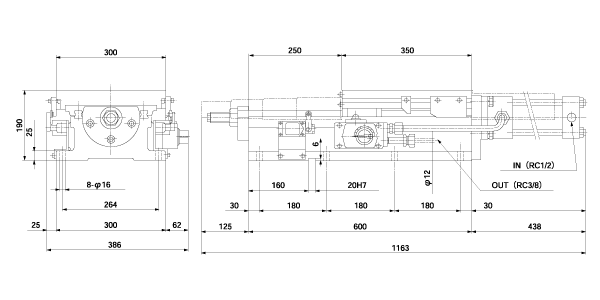

MFL 850-250 st Dimensional drawing

MFL 1500-250

Performance specification

stroke max 250mm
Hydraulic cylinder φ80x250mm
Thrust (3.0MPa) 15000N
Hydraulic oil pressure max 4.0MPa
weight About 150kg

Geometry

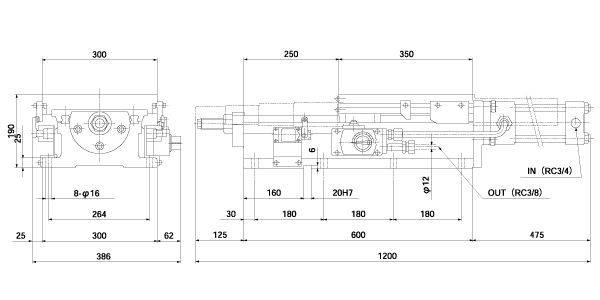

MFL 1500-250 st type dimensions

MFL 1500-350

Performance specification

stroke max 350mm
Hydraulic cylinder φ80x350mm
Thrust (3.0MPa) 15000N
Hydraulic oil pressure max 4.0MPa
weight About 170kg

Geometry

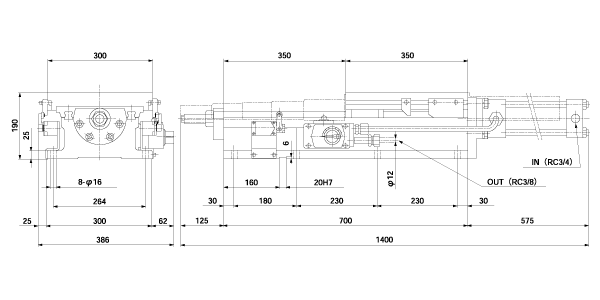

MFL 1500 - 350 st type dimensions

MFL 2400-350

Performance specification

stroke max 350mm
Hydraulic cylinder φ100x350mm
Thrust (3.0MPa) 24000N
Hydraulic oil pressure max 4.0MPa
weight About kg

Geometry

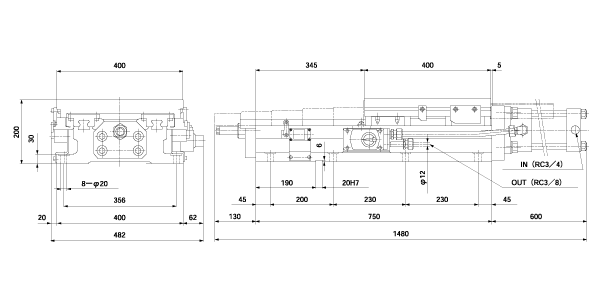

MFL 2400 - 350 st type dimensions
