Miyakawa Special Head

Product Made in Japan
Manufacturer: Miyakawa

Special head

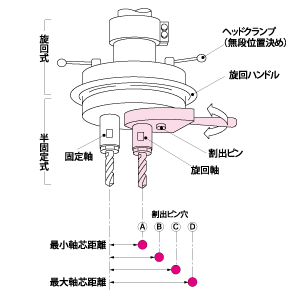

Semi-fixed head Semi-fixed type head (interval switching type)

The axis spacing can be changed by the indexing pin by turning the triangular holder with one axis fixed and the other intermediate shaft as the center.

Semi-fixed explanatory drawing
Cluster plate Cluster plate

In order to further increase accuracy, a steady rest plate should be provided at the tip of the spindle.

Cluster description diagram
Motor feet head K typeMotor foot type head G type Multi-axis motor head (fixed type)

Motor direct connection type work It is a head of mobile processing. In addition, it also demonstrates its effectiveness in chamfering deburring of grouped holes.

Master screw Master screw type head for tapping

It is a head with a master screw attached to each axis.

Master screw explanatory drawing
Electric doll head Electric drill head

It is a modification of the conventional electric drill to 2 axes.

Different diameter drill head Multi-axis different diameter drill head

Appropriate rotation ratio of each axis drill diameter is designed by gear ratio and it is suitable for different diameter drill processing.

Increasing spindle head Head with multiaxial extension shaft

For drilling with steps, you can lower the cost using standard drills by using the incremental axis.

Standard length

  • C- 6 35 mm
  • C-10 47 mm
  • 5 mm jump from + 60 mm
Extended axis explanation
Wide distance head Wide distance head (All gear structure)

The proportion of the wide interval is made especially light weight.
