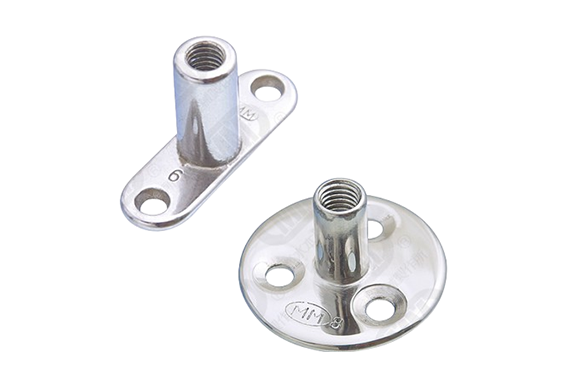

Mizumoto PDN Series Pad Nut
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PDN Series
Features
- It is a nut that can be fastened to a wall.
- It can be installed on a wall, floor, pillar, etc., and bolts can be screwed in.
- The screw part is not penetrated.
Specifications
| Product Number | A | B1 | B2 | H | T | d | C | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| PDN-5M | 9 | 28 | 22 | 21 | 2.2 | 2.2 | 15 | M-5 | 11 | 15 | 0.15 |
| PDN-6M | 12 | 37 | 28.5 | 17 | 2.3 | 3.2 | – | M-6 | 12 | 20 | 0.20 |
| PDN-8M | 40 | – | 24 | 22 | 2.5 | 5.2 | – | M-8 | 25 | 50 | 0.49 |
| PDN-10M | 40 | – | 24 | 22 | 2.5 | 5.2 | – | M-10 | 26 | 80 | 0.78 |

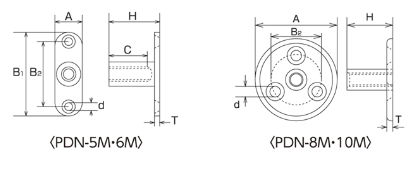

Dimensions (mm)
