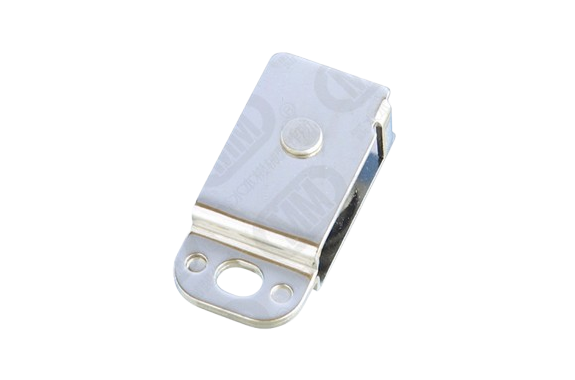

Mizumoto SL Series Slide Pulley
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SL Series
Features
- You can install pulleys on wire ropes to move with a wheel slide.
Specifications
| Model | Wheel Diameter | Number of Wheels | Wheel Groove Width | L | W | H | C | E | T | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| SL-20 | 20 | 1 | 7 | 54 | 26 | 15 | 9 | 7 | 1.5 | ~φ7 | 41 | 30 | 0.29 |
| SL-20S | 20 | 1 | 7 | 54 | 26 | 15 | 9 | 7 | 1.5 | ~φ7 | 52 | 30 | 0.29 |
*SL-20 Material Frame: Stainless Steel SUS304 Pulley (Sheave): Plastic
*SL-20S Material Frame Sheave: Stainless Steel SUS304

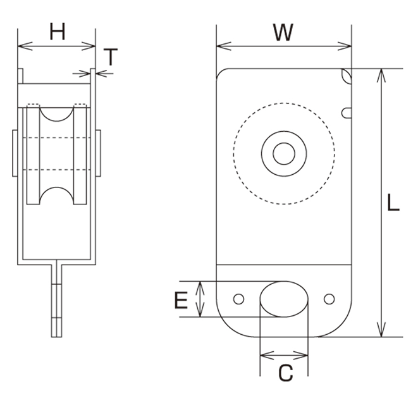

Dimensions (mm)
