Mizumoto Machine Mfg. Co.

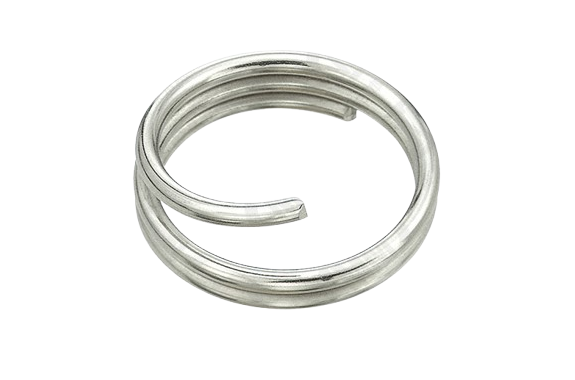

Mizumoto WR-A Series Double-Link For Ropes
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: WR-A Series
Features
- The opening at the end allows it to accommodate thick ropes and other items.
- As a rope terminal fitting.
Specifications
| Part No. | D | L | H | A | Weight (g) | Reference Load Capacity | |
| (kgf) | (kN) | ||||||
| WR-26-25A | 2.6 | 24.5 | 15.5 | 8 | 8 | 5 | 0.05 |
| WR-26-40A | 2.6 | 40 | 14.5 | 6.5 | 14 | 5 | 0.05 |

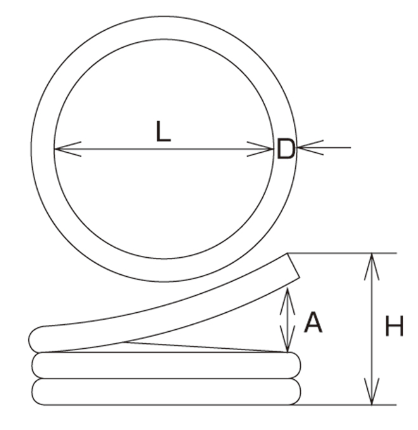

Dimensions (mm)
