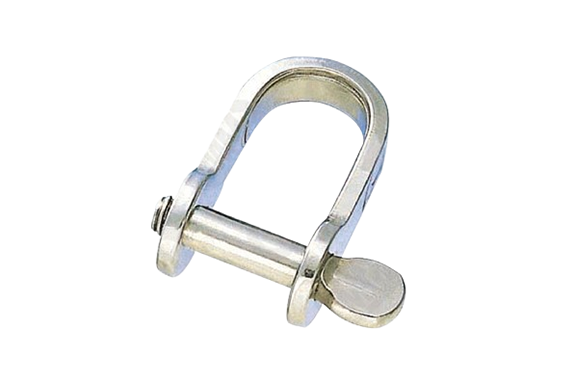

Mizumoto YS Series Plank Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YS Series
Features
- It is an economy type that is easier than screw shackles.
- It can be used as a connecting bracket for chains, wires, ropes, etc., and as a joint for terminal fittings.
Specifications
| Product Number | D | L | B | d | t | F | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| YS-4 | 4 | 19 | 10 | 9.5 | 1.5 | 5.2 | M-4 | 5 | 50 | 0.49 |
| YS-4.8 | 4.8 | 21 | 11 | 11 | 2 | 5.7 | M-5 | 9 | 60 | 0.59 |
| YS-5 | 5 | 22.5 | 11.5 | 12 | 2 | 7 | M-5 | 11 | 70 | 0.69 |
| YS-6 | 6 | 27 | 14 | 14.5 | 3 | 8 | M-6 | 22 | 90 | 0.88 |
| YS-8 | 8 | 48 | 21 | 18 | 4 | 10 | M-8 | 56 | 120 | 1.18 |
*Only the YS-4.8 has a hole in the knob part of the pin.

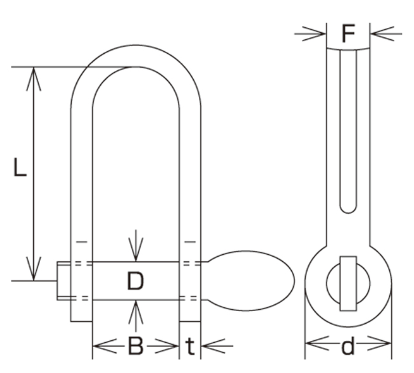

Dimensions (mm)
