Multi Measuring Instruments Co.

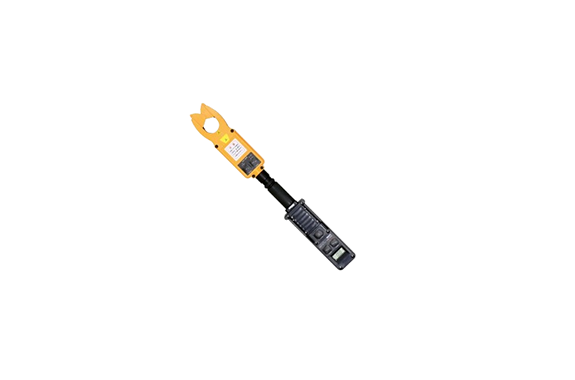

Multi HCL-9000 Telescopic High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-9000
Features
- The first high-voltage clamp meter with infrared transmission CT
- The charging part and the display part (grip part) are more than 60 cm apart due to light transmission
- No rubber gloves are required for operation
Specifications
| Measuring range | AC 20A/600A |
|---|---|
| AC current accuracy | 20A range ±2.5%rdg±8dgt600A range 0~400A ±2.5%rdg±8dgt 400~600A ±3.0%rdg±8dgt |
| CT Inner Diameter | φ35mm |
| Minimum resolution | 0.01A |
| frequency | Please specify 50Hz or 60Hz when ordering |
| output | DC 100mV (full scale for each range) |
| Other features | Data Hold |
| Operating Circuit Voltage | AC 80～7000V |
| power | CT Section: AA Manganese Battery ×3 Measurement Section: AA Manganese Battery ×2 |
| Dimensions and Weight | W70×H548~1090×D50mm Approx. 750g |
| accessory | Batteries, carrying cases |
| option | Recorder Output Code MR-002 Banana Plug on the Recorder Side ¥2,000 (excluding tax) MR-007 Solder Finish on the Recorder Side ¥2,000 (excluding tax) |
