Multi Measuring Instruments Co.

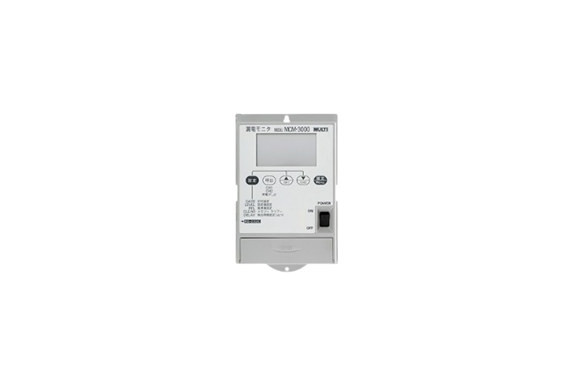

Multi MCM-3000 Insulation Monitoring Device
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CM-3000
Features
It outputs an alarm when the leakage current exceeds the set value and remembers the information.
Specifications
| Number of monitoring circuits | 2 circuits |
|---|---|
| Measuring range | 0～1999mA |
| Minimum resolution | 0.1mA |
| precision | ±5％rdg±5dgt |
| power | AC 100V |
| Alarm output | Open collector output |
| Other features | Test function, clock and memory function |
| Dimensions and weight | W130×H200×D38mm approx. 500g |
| accessory | Power cord |
| option | φ22mm split type ZCT (ZCT-22C) ¥5,400 (excluding tax) |
