NT Tool Corporation KTLP Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: KTLP Series
Features
- Small shank and projection length makes tapping job very stable.
- Simple spindle designing/machining makes machine compact.
- Length compensation allows for feed discrepancies between spindle and tap.
- Radial float corrects alignment discrepancies between pre-drilled hole and tap.
- Quick change
Specifications

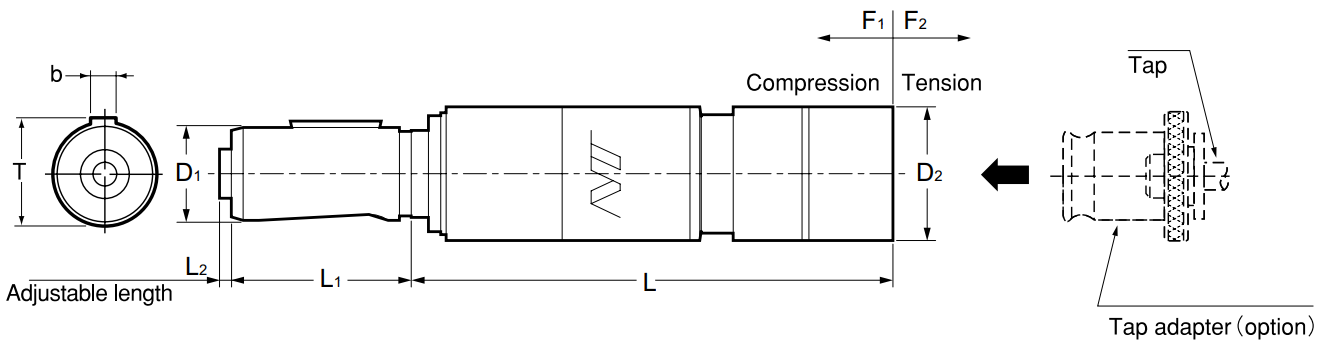

| Model | Tap Size | Adapter Size | Radial Float | F1 Compression | F2 Tension | D1 h6 | D2 | L | L1 ±0.1 | T | b | L2 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KTLP 013-3 | M3～M8 (M10) U1/4～U5/16 (U3/8) | 0 | 0.25 | 3 | 10 | 16 | 23 | 83 | 31 | 17.1 | 5 | 1.5～3.5 | 0.3 |
| KTLP 010-0 | M3～M8 (M10) U1/4～U5/16 (U3/8) | 0 | 0.25 | 0 | 10 | 16 | 23 | 83 | 31 | 17.1 | 5 | 1.5～3.5 | 0.3 |
| KTLP 113-3 | M3～M12 (M15) U1/4～U7/16 (U9/16) Pipe(PT,PS,PF)1/8～1/4 | 1 | 0.5 | 3 | 10 | 20 | 32 | 85 | 37 | 21.1 | 5 | 1.5～3.5 | 0.5 |
| KTLP 110-0 | M3～M12 (M15) U1/4～U7/16 (U9/16) Pipe(PT,PS,PF)1/8～1/4 | 1 | 0.5 | 0 | 10 | 20 | 32 | 85 | 37 | 21.1 | 5 | 1.5～3.5 | 0.5 |
| KTLP 4015-3 | M6～M18 U1/4～U3/4 | 40 | 0.75 | 3 | 12 | 28 | 40 | 109 | 49 | 29.5 | 6 | 1.5～3.5 | 1.0 |
| KTLP 4012-0 | M6～M18 U1/4～U3/4 | 40 | 0.75 | 0 | 12 | 28 | 40 | 109 | 49 | 29.5 | 6 | 1.5～3.5 | 1.0 |
| KTLP 215-3 | M8～M22 U3/8～U7/8 Pipe(PT,PS,PF)1/8～1/2 | 2 | 1 | 3 | 12 | 28 | 50 | 119 | 49 | 29.5 | 6 | 1.5～3.5 | 1.6 |
| KTLP 212-0 | M8～M22 U3/8～U7/8 Pipe(PT,PS,PF)1/8～1/2 | 2 | 1 | 0 | 12 | 28 | 50 | 119 | 49 | 29.5 | 6 | 1.5～3.5 | 1.6 |
