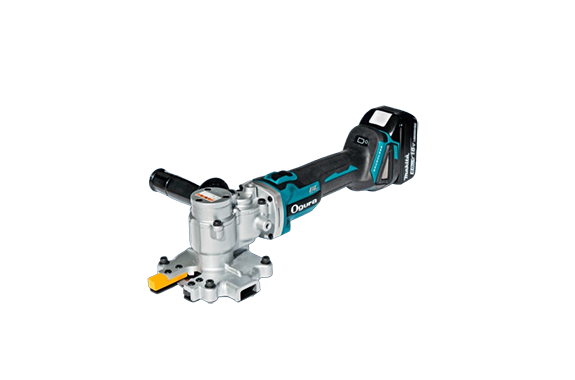

Ogura HSC-25BLN Cordless Tip Saw Cutter
Product Made in Japan
Manufacturer: Ogura
Model: HSC-25BLN
FEATURE OF HSC-25BLN
Equipped with an easy-to-read battery indicator.
Motor design protects against dust and moisture.
Close cutting is possible with just 3.5 mm of rod left above the surface after the cut is completed.
Stable operation with minimum vibration achieved through new-style blade installation.
Minimum burring when cutting-removes need to dress threaded rod before attaching nut.
The handle can be installed either on the left, right, or upper side.
SPECIFICATIONS
| Motor | Brushless DC motor |
| Battery | Li-ion battery (BL1850B), 5.0Ah |
| Weight | 4.0kg (incl. battery) |
| Dimensions | 471 (L) x 137 (W) x 139 (H) mm (excl. handle) |
| Max. Cutting Capacity | 620N/mm2 (Grade 60): D25 rebar |
| External Diameter of Blade | 110 mm |
| Revolutions per Minute | 2,200 rpm |
| Sound Pressure Level | 75.0 dB (A) with no load |
| Sound Power Level | 86.3 dB (A) with no load |
| Standard Accessories | Charger, Battery (BL1850B), Hex Wrench (M5), Dust Bag, Carrying Case, Tipped Saw |
HSC-25BLN Other features:
The First in the Industry equipped with Automatic Speed Control!
Automatic switching mode:
Automatically changes the cutting speed according to load condition for optimum operation.
| Rebar diameter | Number of Cuts per Fully Charged 6.0Ah Battery | Estimated Blade Life |
| D25 SD345 (490N / mm 2 ) | About 60 times | 650 times |
| D19 SD345 (490N / mm 2 ) | 110 times | 950 times |
| D16 SD345 (490N / mm 2 ) | 165 times | About 1400 times |
| D13 SD345 (490N / mm 2 ) | 245 times | About 2500 times |
| D10 SD345 (490N / mm 2 ) | 370 times | About 3000 times |
OPTION
Right Angle Cutting Table for Rebar Joint
