Sakaguchi Electric Heaters CO.

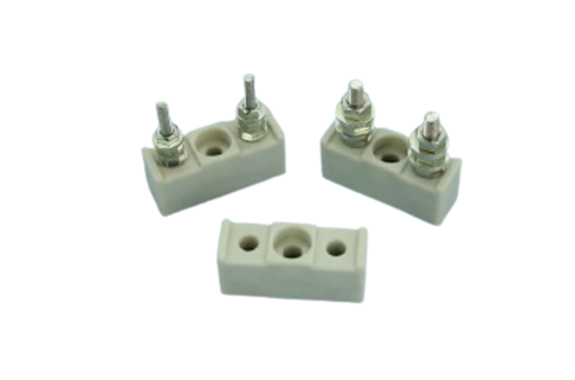

Sakaguchi 2F Terminals
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

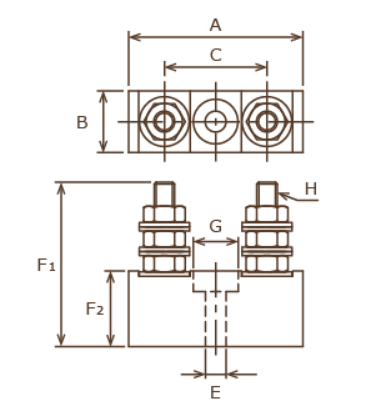

| Product Name | A (mm) | B (mm) | C (mm) | E (mm) | F₁ (mm) | F₂ (mm) | G (mm) | H | Product Code (Without Screw) | Product Code (With Screw) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2PF | 35 | 13 | 20 | 4 | 32 | 14.7 | 9 | M4 | CT2PF | CT2PFB |
| 2PF | 35 | 13 | 20 | 4 | 32 | 14.7 | 9 | M3 | — | CT2PFB3 |
