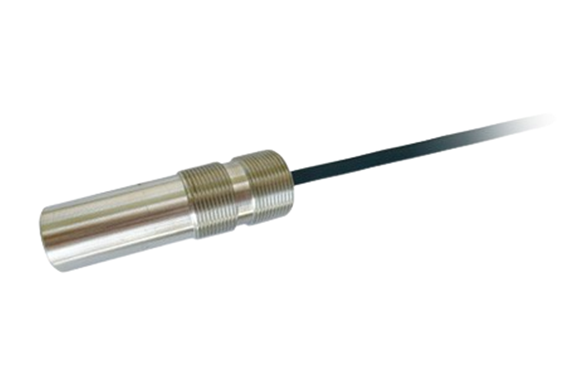

SAN-E TEC SME-MG Rotation Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SME-MG
Features
- Electromagnetic power generation method
- No power is required.
- IP65 compliant
Specifications
| Item | Specifications |
|---|---|
| Inductance | 1.3H±10% （1KHz） |
| DC resistance | 3KΩ±10% （20℃） |
| Output voltage | 3Ｖp-p or more Detection gear : M1（S45C） Gap : 0.5mm Detection frequency: 1KHz (output waveform) |
| Dielectric voltage | AC. 250V: 1 min. (detection: 5mA) |
| Operating humidity | −10℃ to +80℃ |
| Protective structure | IP65 |
| Tightening torque | 100Kgf･cm or less |
Dimensional
