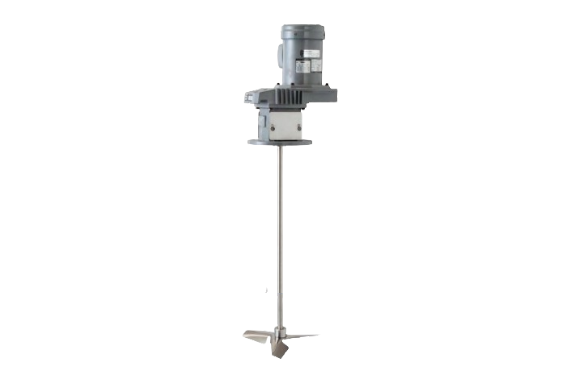

SATAKE Multi-A Mixer AT□-G Series Medium Speed Type
Manufacturer: SATAKE MultiMix Corporation
Model: AT□-G Series
Feature
- The AT-G type mixer can be used in a wide range of applications due to its small size, light weight, high mixing efficiency, and high durability.
- This new type of mixer is ideal for general soluble liquid-liquid mixing, dilution, heat transfer, relatively soluble solid-liquid mixing, dispersion, prevent solids suspension, and uniform mixing.
Standard specifications
| Model | Frame number No. | Motor | Impeller | Shaft length (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Power (kW) | Number of Poles (P) | Phase and Voltage (V) | Frequency (Hz) | Impeller Speed (min-1) | Diameter (mm) | Stage | |||
| AT14-G□□-0.065A | 1 | 0.065 | 4 | Single-phase 100 | 50 | 300 | 150 | 1 | 689 |
| 60 | 360 | ||||||||
| AT14-G□□-0.1A | 1 | 0.1 | 4 | Single-phase 100 | 50 | 300 | 220 | 1 | 889 |
| 60 | 360 | ||||||||
| AT14-G□□-0.1B | 1 | 0.1 | 4 | Three-phase 200 | 50 | 300 | 220 | 1 | 889 |
| 60 | 360 | ||||||||
| AT24-G□□-0.2A | 2 | 0.2 | 4 | Single-phase 100 | 50 | 300 | 270 | 1 | 1109 |
| 60 | 360 | ||||||||
| AT24-G□□-0.2B | 2 | 0.2 | 4 | Three-phase 200 | 50 | 300 | 270 | 1 | 1109 |
| 60 | 360 | ||||||||
| AT34-G□□-0.4B | 3 | 0.4 | 4 | Three-phase 200 | 50 | 300 | 310 | 1 | 1399 |
| 60 | 360 | ||||||||
| AT46-G□□-0.4B | 4 | 0.4 | 6 | Three-phase 200 | 50 | 300 | 350 | 1 | 1626 |
| 60 | 240 | ||||||||
| AT44-G□□-0.75B | 4 | 0.75 | 4 | Three-phase 200 | 50 | 300 | 350 | 1 | 1626 |
| 60 | 360 | ||||||||
| AT56-G□□-0.75B | 5 | 0.75 | 6 | Three-phase 200 | 50 | 200 | 400 | 1 | 1856 |
| 60 | 240 | ||||||||
| AT54-G□□-1.5B | 5 | 1.5 | 4 | Three-phase 200 | 50 | 300 | 400 | 1 | 1856 |
| 60 | 360 | ||||||||
Dimensional drawing
| Model | Frame number | Motor (kW) | (A) | B | B-MAX (Option) | φd | D | E | (F) | M | NS-φZS | O.S. | P.S. | N-φZ | O.D. | P.D. | Q | R | Estimated weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AT-G | 1 | 0.065A | 317 | 600 | 1050 | 13 | 150 | 135 | 182 | 12 | 4-15 | 165 | 130 | 8-15 | 185 | 150 | 84 | 134 | 14 |
| 1 | 0.1A | 317 | 800 | 1050 | 13 | 220 | 135 | 182 | 12 | 4-15 | 165 | 130 | 8-15 | 185 | 150 | 84 | 134 | 14 | |
| 1 | 0.1B | 308 | 800 | 1050 | 13 | 220 | 135 | 173 | 12 | 4-15 | 165 | 130 | 8-15 | 185 | 150 | 84 | 134 | 14 | |
| 2 | 0.2A | 365 | 1000 | 1250 | 16 | 270 | 160 | 205 | 12 | 4-15 | 165 | 130 | 8-15 | 185 | 150 | 96 | 165 | 19 | |
| 2 | 0.2B | 335 | 1000 | 1250 | 16 | 270 | 160 | 175 | 12 | 4-15 | 165 | 130 | 8-15 | 185 | 150 | 96 | 165 | 19 | |
| 3 | 0.4B | 421 | 1300 | 1500 | 20 | 310 | 191 | 230 | 16 | 4-19 | 190 | 155 | 8-15 | 250 | 175 | 112 | 183 | 25 | |
| 4 | 0.75B | 500 | 1500 | 1750 | 25 | 350 | 204 | 260 | 16 | 4-23 | 230 | 160 | 8-23 | 250 | 210 | 125 | 215 | 40 | |
| 5 | 1.5B | 578 | 1700 | 1850 | 30 | 400 | 276 | 302 | 16 | 4-23 | 250 | 210 | 8-23 | 280 | 240 | 147 | 245 | 60 |
