SATAKE Portable Mixer Mount Units Z Series
Manufacturer: SATAKE MultiMix Corporation
Model: Z Series ( ZS-1 / 2 / 3 / 4 / 5 )
Feature
- The mount units of Z Series are a convenient mount for small tanks, glass, borax, resin, and various types of lining tanks, where the shape, strength, and structure of the tank make it difficult to mount directly on the tank.

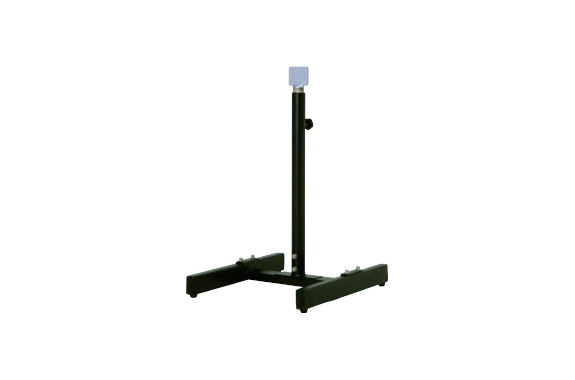

ZS-1 (Hand-operated stand)
- Designed for small mixing volume.
- Easy assembly and smooth lifting and lowering.
ZS-2/ZS-3 (Spring balancer stand)
- Spring balancer is used for easy, smooth lifting and lowering with 10%~20% of the mixer’s own weight.
- Maintenance such as lubrication is not required.

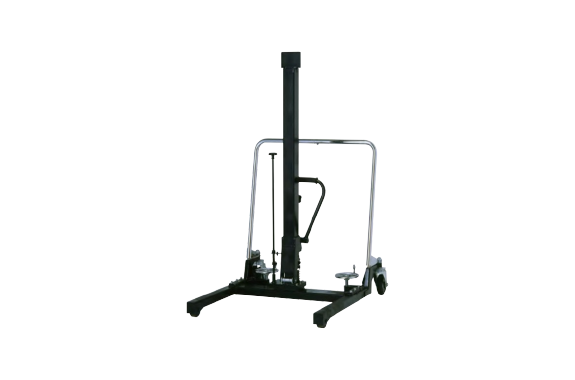

ZS-4/ZS-5 (Hydraulically-operated stand)
- A foot-operated oil pump is used for easy hydraulic lifting and lowering.
- Easy to move as it is equipped with casters.
ZS-1/ZS-2/ZS-3 (Dimensional drawing)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZS-1 | 700 | 330 | 1030 | 430 | 370 | 500 | 300 | 200 | 74 | 60 | 70 | 9 | φ42 | φ34 | 270 | 8.5 |
| ZS-2 | 930 | 380 | 1310 | 515 | 425 | 560 | 340 | 220 | 97 | 80 | 80 | 12 | □80 | φ34 | 290 | 20 |
| ZS-3 | 1200 | 450 | 1650 | 650 | 560 | 700 | 420 | 280 | 97 | 80 | 80 | 12 | □80 | φ34 | 370 | 26 |
ZS-4/ZS-5 (Dimensional drawing)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | O | P | Q | R | Weight (kg) | Lift weight (kgf) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZS-4 | 1400 | 650 | 2050 | 776 | 660 | 1090 | 510 | 580 | 90 | 110 | 125 | 19 | □70 | 895 | 500 | 900 | 470 | 60 | 33 |
| ZS-5 | 1650 | 700 | 2350 | 961 | 845 | 1365 | 695 | 670 | 90 | 130 | 170 | 25 | □80 | 1080 | 685 | 900 | 655 | 74 | 40 |
