Manufacturer: SHIMADEN CO., LTD.

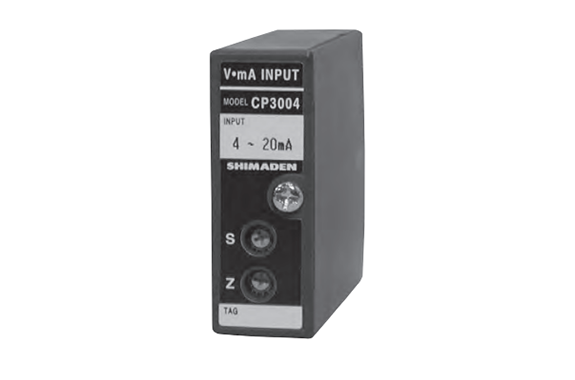

Model: CP3004

Features

It converts DC voltage or DC current signals into various DC signals and outputs them. It is an insulated output V・mA signal converter.

Specification

The input types include 0 to 5V DC, 0 to 1V DC, 0 to 10V DC, 1 to 5V DC, 4 to 20mA DC, -5 to 5V DC, and -10 to 10V DC. Output types are 0 to 5V DC, 0 to 10V DC, 1 to 5V DC, and 4 to 20mA DC.
Voltage input resistance is ≥1MΩ, current input is 250Ω. Conversion accuracy is ±0.1% FS, with a response speed of ≤5ms. Conversion output: DC voltage ≤2mA load current, DC current ≤300Ω load resistance.
Power supply: 24V DC ±10%, current consumption ≤50mA. Operating temperature: 0–55°C, humidity: 30–90% RH. Dimensions: H48 × W17.5 × D65 mm, weight: ~70g.
