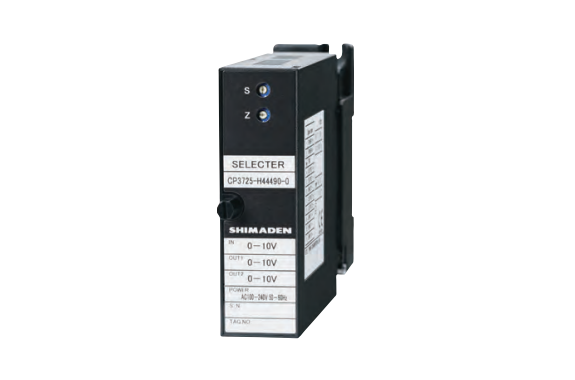

Shimaden CP3725 High And Low Selector

Manufacturer: SHIMADEN CO., LTD.
Model: CP3725
Features
Input DC signals at two points and output either the larger value or the smaller value.
Specifications
High selector: Outputs the larger value of two input values.
Low selector: Outputs the smaller value of two input values.
Input types: 0-1V DC, 0-10V DC, 0-5V DC,1-5V DC,4-20mA DC.
Output types: 0-10mV DC, 0-100mV DC, 0-1V DC, 0-10V DC, 0-5V DC, 1-5V DC , 4-20mA DC.
Number of inputs: 2.
Number of outputs : 2.
Response time: 85ms or less.
General specifications
Power supply : 24VDC ±10%, 100-240V ±10%, AC 50/60Hz.
Power consumption: 1-output type: 4.5VA (AC), 1.4W (DC);
2-output type: 5.5VA (AC), 1.7W (DC).
Operating environment: -10 to 60°C. 90% RH or less (no condensation)
External dimensions: H86 x W29 x D125 mm
Weight: Main unit 120g or less, socket terminal block 80g or less
